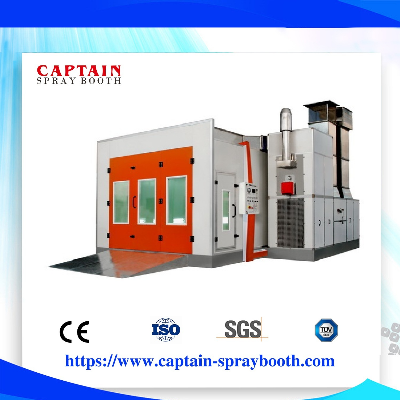

Auto Spray Booth with Infrared Lamps Heating

Product Description We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .   1. CE approved 2. German Technology 3. Professional European-style blower system 4. Spray booth professional manufacturer 5. Factory price, energy saving 6. High quality, best sell service, timely delivery 7. We can meet at customer's special requirementSame quality, our price is lower.  Same price, our quality is better. We supply 2 years warranty!Product Description   Model:EX-YB 100RSketch Outside Size(mm):7050*5500*3500Inside Size(mm):6900*4000*2800Front Door(mm):2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks.Service Door(mm):650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit.Total Power:16 kwCabin SystemWallboardEPS material, tongue and groove interlock construction, thickness: 75 mm, 0.5mm steel plate.Basement300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL).Inlet FanDouble-intake belt centrifugal fan, Capacity: 14500m³/h each.Outlet FanDouble-intake belt centrifugal fan, Capacity: 18000m³/h.Power: 4 kwPower: 5.5kwQuantity: 2 setQuantity: 1 setDucting4 meters exhausted air duct, one flop damper, one weather hood, one anti-bird mesh.Purification SystemG3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter.Heating SystemItaly Riello G20 diesel burner, 200000Kcal/h.Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%.Chimney ducting3 meters stainless ducting and one chimney elbow.Max temp: 80ºC, heating time: 4-6min(20-60ºC), fuel consumption: 5-8 kg/ vehicle.Lighting SystemCeiling Lights: 8Units×4Pcs=32Pcs×36W,  Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux.Controlling SystemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller.Environmental SystemG3 grade glass fiber floor filter, exhaust active carbon filter.  Detailed Photos Designed Draw ProductionHigh desensity wall panel, two men stand on it, it will not bend.  Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.  Our control box Packing and Delivery InstallationReal pictures of Installed Model----This is the model we installed ourself for testing, it works very well. Different Colors for your choiceWorkshop Factory View Outside size: (mm)7000x5250x3430 Inside size: (mm)6900x3900x2650 Main door size: (mm)3000(W)x2600(H) Total power: (kw)8.5 Room system 1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets. 2. Main door frames are made of bending section, emergency door at the main door. 3. Room frames are fixed by galvanized sheet. 4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates. 5. Inside ramps construction. Air circulation system 1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h 2. Air generator group consist of painted section bar and galvanized sheets. 3. Exhaust air duct consist of galvanized sheets and flanges. 4. On-load air velocity: 0.35m/s, air change rate: 320times/h Purification system 1. Inlet air filter is high quality filter, it can catch 10um dust particle. 2. Roof filter is high-efficient filter, it can catch 5um dust particle. 3. Floor filter is fiber glass filter. Heating system Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps. Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately. Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C). Lighting system 1. Roof lighting: 24pcs*36w lamps. 2. Illuminance: 700Lux 3. Side lighting system is optional Control system 1. It adopts high-quality electronic components, Major loop set Multiple protection. 2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc. Exhaust gas disposal 1. Direct exhaust 2. Exhaust fan is optional 20'/40'HQ PCS 1 set/20'GP, 3 sets/40HQ Sincerely hope can get your inquiry and warmly welcome to our factory! I'm just here waiting for you!Introduction of our company Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd) Is a professional manufacturer of different kinds of spraybooth and we can customize according to your
