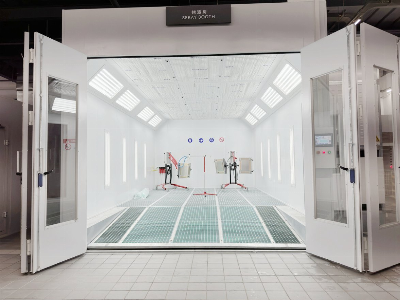

Factory Wholesale Price CE Certification Spray Paint Booth From Infitech

Product Description INFITECH CE certification auto car industrial painting roomDesignProduct Parameters Technical parametersINFITECH CE certification auto car industrial painting room Design standard BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 Internal dimensions7000 x 4000 x 2800mm (L X W X H) External dimensions7110 X 5570 X 3460mm (L X W X H)Plenum height600mm Entrance door1 set, 3200 X 2700mm (W X H) Personnel door1 set, 800 X 2000mm (W X H)Ceiling lighting10 sets, each 4 X 18W, 720W total, LED lampSidewall lightingOptional Brightness >1,000LUXPurification Pre-filter, ceiling filter, floor filter, extract filter Air intake Direct-type turbine fan, 7.5KW SIEMENS motor Air exhaust Direct-type turbine fan, 7.5KW SIEMENS motor Air volume28,000m3/h Empty loaded air speed +/-0.27m/sHeating systemWall mounted infrared heating system, 10 units, 10 x 3KW Controls CE standard control box Rated power49KWFeaturesAirflow• Full downdraft for spray and cure• Controlled airflow ceilingConstruction• White pre-coated galvanized steel• Dual-skin insulated panels filled with rock wool, 50mm thick• 600mm high plenum• Full grids (650kg/wheel), with pit for extractionDoors• 3-wing entry door, big tempered glass window• Personnel door with observation windowHeat• Infrared heating lamps, 10 units, 3x1KW/unit Service time of the lamps can last as long as 5,000hr• Temperature control• Time control• Group control All units can work together, or every unit works individually• Power adjustment• Automatic slow startFiltration• Pre-filter: G3 grade pre-filter plate filter• Ceiling filter: F5 grade filter cotton, Model SP-600G• Floor filter: G2 grade fiberglass paint arrestor filters• Extract filter: Fiberglass filterControls• PLC controller, pressure gaugeFunctions: Painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection  Detailed Photos Produce  details Packaging and loading  Company Profile Company informationGuangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
