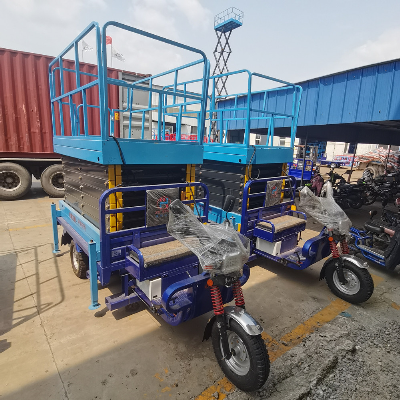

Motorcycle Tricycle Carrying Scissor Lift Table

  Product DescriptionThe mobile hydraulic scissor lift platform is widely used for the equipments installations and maintenance, mainly used on construction sites, workshops, warehouse, airport, bus&railway stations, hotels, garage, gas station, aerial pipeline, and so on. It can design and produce according to clients' requirements.Product Parameters ModelSJY0.3-8Capacity300kg--500kgTable size2100*900mmMax platform height8mWorking height9.7mDimension2200*1060*1380mmWeight1050kgMotor1.5kw/380v/50HzCylinderHSG80/45 *1pcTire500-8,pneumaticLifting speed4-6m/minSteel materialQ235 carbon high strength steel.Platform thickness3mm steel plate bend, add 3mm diamond plate.Scissor rod Rectangular tube, size:120*60*4mm. Bottom frameRectangular tube, size:100*50*4mm.Oil tube2-10-43MPa,Double steel net high-pressure tube. Inside explosion-proof valve.Pump stationAnshenglisheng brand, with emergency oil returning valve. Inside has overflow valve, overload protection.Support legs4 pcs, Rectangular tube, size:100*50*4mm.Control boxDelixi brands, contactor list links, equipped with thermal overload protection, phase losing protection.Control methodBottom and upper controls,Up.,down, stop and jerk button.Shaft pin45# round steel made, thermal refining.Bearing SF-2 oil-free self-lubricating bearings.Hydraulic oil32# Great wall brand.Derusting processingShot and blasting derusting treatment,make the surface clean and effect of uneven, increase the adhesion of powder when paint.Paint Using electrostatic powder coating,strong adhesion,High brightness of color. Bake treatment.PackageWooden case packing. ----------------These are all the models table list:   ModelPlatform Height(m)Capacity(kg)Platform size(m)Total size(m)Weight(kg)SJY0.3-443001.50*0.81.70*0.90*1.1400SJY0.3-663001.50*0.81.70*0.90*1.2650SJY0.5-665001.50*0.81.70*0.90*1.3700SJY0.3-883001.80*1.22.30*1.50*1.41200SJY0.5-885001.80*1.22.30*1.50*1.451350SJY0.8-888001.81*1.22.30*1.50*1.551700SJY0.3-10103002.10*1.22.60*1.50*1.501450SJY0.5-10105002.12*1.22.60*1.50*1.551600SJY0.8-10108002.2*1.22.60*1.50*1.651800SJY1-101010002.12*1.52.60*1.95*1.751930SJY0.3-12123002.53*1.52.95*1.8*1.752580SJY0.5-12125002.6*1.53.0*1.95*1.82780SJY0.8-12128002.6*1.63.2*2.10*2.03600SJY0.3-14143002.75*1.53.25*1.9*2.02900SJY0.5-14143003.0*1.83.5*2.1*2.03200SJY0.3-16163003.0*1.83.6*2.1*2.13500SJY0.3-18183003.5*1.84.01*2.0*2.24600SJY0.3-20203003.6*1.84.1*2.3*2.34800More Images Show  Main Features★ Platform height: 4m-20m.★ Loading capacity: 300-1000kg.★ Anti-slip checkered steel plate of the platform surface.★ Electric controls, upper and down panels, hydraulic lifting way.★ Power source options: power wire supply, battery, diesel.★ Voltage: 380v, 220v, 50hz/60hz, can supply according to client's need.★ Emergency and overload protection devices.★ Supply for operation and maintenance manual, hydraulic diagram, electric diagram, good warranty and service.  Workshop Show     Packaging & Shipping    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
