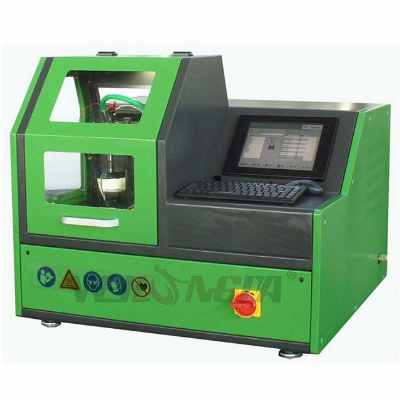

Wld-S206 Multi-Functional Electric Common Diesel Fuelrail Injector Test Bench

1.DESRIPTION   EPS206 Common Rail Injector Test Bench is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows7 operating system. The oil quantity is measured by sensor and displayed on computer screen (Electronic fuel delivery system). All data can be searched and saved. It adopts B-O-S-C-H (DENSO) original common rail pump to provide 0-2500 bar for rail pressure .The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of B-O-S-C-H, D-E-L-P-H-I, DENSO and SIEMENS. It adopts the advanced technology, steady performance, precise measurement and convenient operation.2. CHARACTERISTIC    2.1 Controlled by the computer in real time, Windows7 operating system, touch screen operation.     2.2 Oil quantity is measured by sensor and displayed on 17 inches LCD screen.    2.3 Using the original B-O-S-C-H high pressure common rail oil pump to provide 0 ~ 2500 bar rail pressure.    2.4 The injector's injection times can be set freely;    2.5 More than 3000 kinds of injectors data can be searched and used.    2.6 Rail pressure can be tested in real time.    2.7 Provide pressure overload protection.    2.8 Pulse width and frequency of the injector drive singal can be adjusted.    2.9 Injection time can be settled.    2.10 Protection function of short-circuit.    2.11 Precise measurement, easy operation, low noise and energy saving. 3. FUNCTION    3.1 Test injector brands: B-O-S-C-H, D-E-L-P-H-I, DENSO, SIEMENS    3.2 Test 1 piece of injector at same time.    3.3 Test the pre-injection of common rail injector.    3.4 Test the max oil quantity of common rail injector.    3.5 Test the cranking oil quantity of common rail injector.    3.6 Test the back flow oil quantity of common rail injector.    3.7 Test the average oil quantity of common rail injector.    3.8 Test the seal performance of common rail injector.    3.9 Data can be searched and saved.    3.10 Can test the piezoelectronic injectors.     3.11 Real-time display fuel injection /return volume curve    3.12 BIP FUNCTIONS( optional )    3.13 Can generate B-O-S-C-H IQA CODE,QR coding( B-O-S-C-H, D-E-L-P-H-I, DENSO, SIEMENS, C-U-M-M-I-N-S )    3.14 AHE testing     3.15 Injector inductance and Resistance.4. TECHNICAL PARAMETERS    4.1 Pulse width: 0.1 ~ 20ms;    4.2 Power;3.8KW    4.3 The number of consecutive injections: 0 ~ 1000 times;    4.4 Fuel temperature: 40±2°C;    4.5 Rail pressure: 0 ~ 2500 bar;    4.6 Test oil filtration accuracy: 5μ;    4.7 input power: single phase 220V    4.8 Test bench speed: 0 ~ 3000 rev / min;    4.9 Fuel tank capacity: 16L;    4.10 Weight: 160 kg   Accessories of NTS206 Common Rail injectors Test benchNO.NameQuantityUnitRemark1Common rail injector test bench 1set 212* 14  600mm high pressure pipe1PC 314* 14  600mm high pressure pipe1PC 4B-o-s-c-h Rail1PCOn the machine5Bracket of Rail1PCOn the machine6Adapter CRIN wire for B-O-S-C-H, D-E-I-P-H-I, DENSO, SIEMENS12PCS 7PIEZO single one valve 1PC 8Pressure Sensor1PCOn the rail9Collection oil adaptorbig holeSmall hole1each PC 106mm soft pipe 2PCs /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
