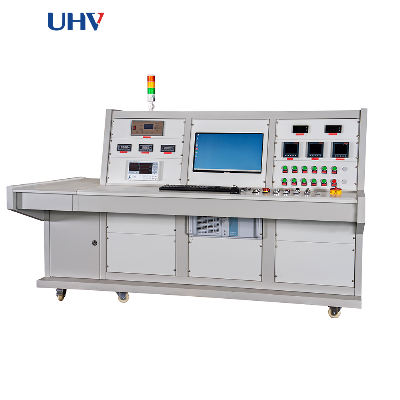

Htbz-H Customized 1000kVA Transformer Test Bench

Brief introductionTransformer test bench is mainly for power transformers, distribution transformers no-load, load characteristics test, induced voltage and frequency voltage withstand test. The device measurement part by the high-end single-chip control, digital display, no load, short circuit test data simultaneously sampled by the microcontroller to avoid the errors of traditional test methods in voltage, current meter, power meter readings were caused by manual calculation.   Products features 1.Using a large backlit LCD screen, operation, display classification clear and intuitive, easy to operate.2.Can finish transformer no-load loss, load loss, DC resistance, TTR, AC hi-pot, induced voltage test.3.Voltage, current digital meter, or direct reading pointer meter, print loss, ratio, DC resistance test results.4.Voltage withstand test with sound& light alarm, timing.Technique parameters   projectMeasuring rangerelative errorVoltage0.1~600V±(0.2% reading +0.1% range)current0.1~200A±(0.2% reading +0.1% range)PowerU*I±(0.2% reading +0.1% range)Power factor0.1~0.99993 Digitalpower supplyAC220V±10% 50Hz±2%Use environmentOperating temperature range 0~40ºC Relative humidity 30%~90%volume2500*1060*1500(mm)Weight100kg~1000kg(Change according to custom requirements)FAQ1. Is your company a sales company or a manufacturer? Wuhan UHV Power Technology Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is. After the goods have been ordered, it takes about 7 working days for production if there are no accidents.3. Is the quality guaranteed? To ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.4. What is the after-sales terms? We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.5. What are the cooperative countries or regions? Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam, and other regions have cooperative distributors, can provide thoughtful services.Contact usWuhan UHV Power Technology Co., Ltd. Address: Building 6, Optics Valley Optical-Mechanical Industrial Park, No.83, Gaoxin 5th Road, East Lake High-tech Zone, Wuhan,China   430223/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
