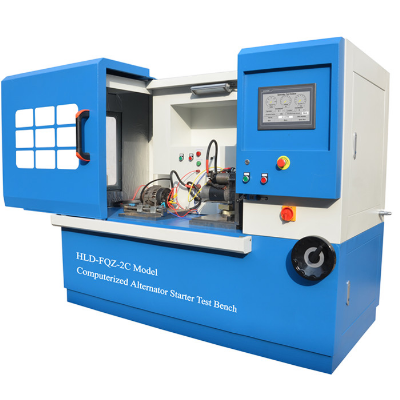

Computer Control Alternator Starter Test Bench

                         HLD-FQZ-2C model Computerized Alternator Starter Test Bench General introduction: 1.It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc); 2.Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V, 10000RPM Test item: Speed, Voltage, Current (Load or no-load) 3.Test Starter: 15KW, 0-2000A, 0-200N.M, 12V or 24V or 48V Test item: Torque, Voltage, Current (Load or no-load) Advantages: 1.It uses variable frequency speed regulation 2.It displays result by digital instrument, the test result is accurate and can be read directly. 3.It is easy to learn and operate. 4.It is with fuse protection. 5.It is with indicator lamp following each step and warn you the problems. 6.It does not need battery to test alternator, it can excite voltage itself. 7.It needs external battery to test starter. 8.High quality speed sensor. 9.It possesses high control sensitivity and strong controllability. 10.It is matched with PLC computer to operate, display, save & print test results and curves. Technical parameter:Model noHLD-FQZ-2CLanguageEnglish/Spanish, etcMaterialMetal platePaintingPowder painting, durable and beautifulColorBlueVoltage380V 50 Hz 3P (other voltage acceptable)Motor power7.5KWMotor speed0-3600RpmFrequency converter power11KWAlternator testing:Maximum power7.5KWMaximum current200AMaximum voltage80VExternal batteryNoExcitation voltage12V/24VSpeed rangeNo load:0-12000Rpmad;  Load:0-10000RpmLoad modeElectronic module (advance)Motor drive styleBelt connectClamp styleMounting clamp, fasten or loosen with button control, easy to mount or removeStarter testing:Maximum Power15KWMaximum current2000AMaximum torque200N.mTest solenoid excitation voltage12V/24VNeed external battery12V/24V/48VAccessories:Accessory wires, belt, blank plates for starters, fuses, etc.Others you may want to know:MOQ1setWarranty period12 monthsPayment termT/T 50% in advance, the balance should be paid before delivery  (negotiable)Delivery time30 days after receiving downpaymentHS code90312000.90Packing sizes1870*1020*1660mm=3.17CBMWhy Choose us: 1.32 years' design,development and produce experience 2.Professional R&D team 3.Strict QC 4.A good pre-sale and after-sale service 5.Can design and make according to customer's requests   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
