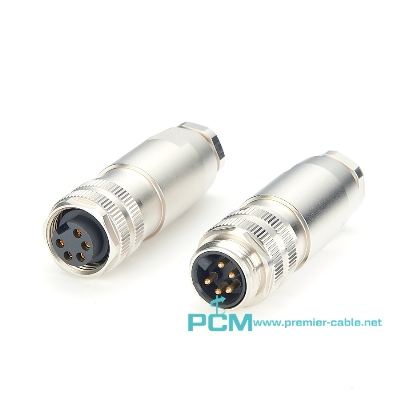

Nmea2000 Mini-C Field Connector

5 Contacts, Cable Mount, 7/8 Connector  Mini 7/8" Field Attachable Connector  Mini Field-Attachable Connectors The Mini-C connector is used on thick backbones, heavy cable  The Micro-C connector is used on thin backbones, light cable   Each cable uses different wire gauges for the different signal lines. The power lines are 22AWG for the light version and 16AWG for the heavy version. The signal lines are 24AWG for the light version and 18AWG for the heavy version. Maximum current is also defined as 3 amps for the light version and 8 amps for the heavy version. The current difference indicate why one user might prefer a thick backbone over a thin one. Field-attachable connections allow you to make field connections to bulk cable.  The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installation Color-coded screw terminators make for error-free field installation, Rugged housing material designed to withstand harsh marine environments/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
