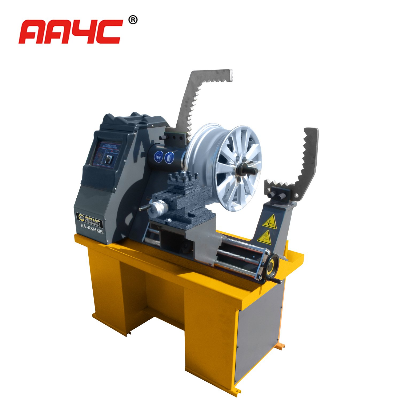

AA4c Rim Straightening Machine (AA-RSM595)

RIM STRAIGHTENING MACHINE with LATHE System This unique machine is used to correct and straighten all kinds Of defected steel and alloy rims ranging from 10'' to 22'. DIMENSIONS Height 1250 mm Width 1110 mm Length 610 mm Packing size: 1370x880x1495mm Weight 370 Kg /400kg MOTOR SPECIFICATIONS Mechanic 0, 55 kw, 1400 rpm, 0, 75 HP, 3 phase - single phase, 220V - 380 V Hydraulic 0, 75 kw 1400 rpm, 1 HP, 3 Phase - single phase, 220V - 380 V Sound 35 dB HYDRAULIC PISTON POWER Total pressure = π R2 x 160 (Working pressure bar) Total pressure = 3, 14* (3, 15 x 3, 15) = 31, 156kg Total pressure = 31, 156 x 160 = 4 984, 96kg Diameter of piston cylinder we used is 63mm which comes to as radius 3, 15 cm. As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines. STANDARD ACCESSORIES LIST Standard Accessories of AA-RSM595  No.itemSpecificationQty1Connecting flanges for different sizes of rimsRim to center  washer10  Φ 541  Φ 56.51  Φ 571  Φ 581  Φ 59.51  Φ 60.11  Φ 63.31  Φ 641  Φ 651  Φ 66.61  Φ 721  Φ 72.512Gauge 13Pole for positioning the deformed part 14Allen head wrenches5#6#8#10#12#15  Angular supports 16  Square supports 27Gradual supports 28  Cutter type supports 49  Supports miles 410  Lever 111  Lathe cutter 112  Front supporting seat 113  ,; ,; Rear supporting seat 114  Professional wrench19#115  Centering ring 116Cross sliding part(including cutter holder) 1 set17Flange(including 5 fixing bolt) 1 set  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
