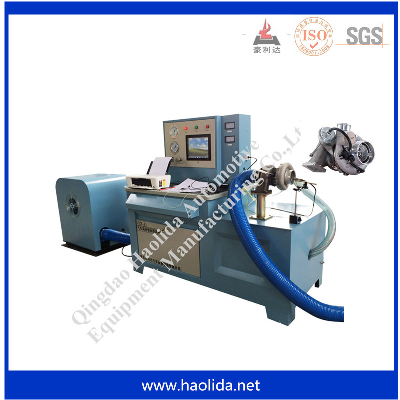

Automobile Turbocharger Test Bench for Trucks, Cars

QZY-2C Model Automobile Turbocharger Test Bench   1.Function IntroductionAutomobile turbocharger test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger.This test bench can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger, and print the test result and wave form curve with a printer. It achieves comprehensive dynamic test and data record of turbocharger.2. Technical Parameter    Power: AC AC380V 50HZ (made to Measure)    Power of airflow generator: 5.5KW (made to order)    Frequency converter power: 7.5KW    RPM of airflow generator: 0--20000r/min    Maximum air pressure of airflow generator: 5KPa    Maximum flow rate of airflow generator: 1500m³/h    Power of oil pump motor: 750W    Rated pressure of oil pump: 0.3MPa    Maximum displacement of oil pump: 15L/minMOQ: 1 set  Panel: English  Delivery time : 35-40days  Payment term:T/T 50% in advance,50% before delivery  Packing :Export Plywood case 1830*1050*1685mm=3.24CBM930*750*1020mm=0.71CBMTotal: 3.95CBMTurbocharger Test Benches:      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
