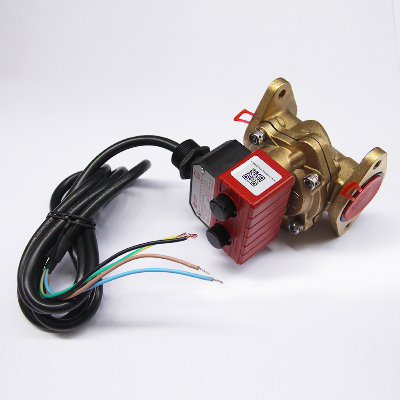

Direct-Acting Piston Structure Brass Haosheng Box Solenoid Valve Fuel Dispenser

Exm double flow solenoid valveProducts DescriptionAdvantage1. This valve is suitable for computer dispenser  2.It has types of large flow rate, small flow rate, and closed two position two-way valve.   3.Controlled by high-power double solenoid valve coil and using the Exm explosion-proof, it has compact structure and small size with superior performance.   4.It is a reliable ideal explosion-proof solenoid valve controlled by computer dispenser.Details ImagesProduct ParamentersMain performance parameters and connecting formatItemsUnitsTechnical parametersNominal diametermm202540Nominal pressureMPa0.350.350.35 Minimum operating  pressure differential MPa0.0350.0350.035Nominal voltageAC220V 50HZ, DC24V, DC12VThe fluctuation of voltage %85-110Insulation classB Operating ambient  temperature -40°C-+50°C Working environment  relative temperature 5%-95% ±25°CExplosion-proof parts diagram  Schematic diagram  Circuit interconnect pattern1. cable 2. nut 3. rubber gasket 4. washer 5. shell 6. alkyd glass paint tube 7. packing 8. electromagnetic coil group 9. reset spring of movable iron core 10. movable iron core 11.valve cover 12. reset spring of diaphragm 13. diaphragm 14. valve body 15. fuseConditions of useAtmospheric pressure: 80 ~ 110kPaAmbient temperature: -40 ~ +50°CAmbient air relative humidity: 5% ~ 90% (+25°C)Nominal pressure: 0.035MPaOperating pressure difference: 0.035MPaOperation place: Area 1 and Area 2 containing explosive gas mixture of IIA, IIB, IIC and GroupT1 ~ T3 .Operating position: horizontalWorking schedule: continuousWorking environment: no violent vibration, no dripping, drenching, splashing, no severe corrosiveand insulation-breaking gas (steam).Working medium: gasoline, diesel oil and other non - corrosive chemical coating./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
