Temperature-Compensating Film Pressure Sensor

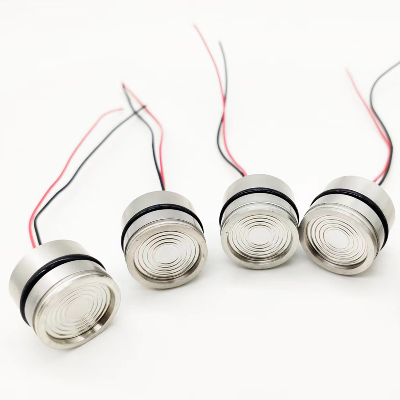

       XYT-193 Digital Piezoresistive Pressure sensor       Product DescriptionThe Model XYT-193 Digital Pressure Transducer is an oil filled OEM pressure sensitive element isolated with a 316 stainless steel corrugated diaphragm. The chip adopts the international advanced   high-stable and high-precision silicon pressure chip, and applies  the  new production technology and high-precision production inspection equipment, so that the product has excellent stability, temperature  compensation and nonlinearity are carried out through the special integrated circuit developed by the company. Correction, direct output  of standard (4~20) mADC signal. Low power consumption, easy to connect to various devices, easy to assemble and strong applicability.  This product can be widely used in the detection of various fluid pressures.Features1.With gauge pressure, absolute pressure, sealed pressure form 2.Isolated structure, suitable for a variety of fluid media3.Standard Φ19mm sensor general size       4.All stainless steel 316L material            5.Standard (4~20) mA output, high precision 6.Power supply: 8-30VDC7.-20~80C wide temperature range compensationConstruction Performance1. Diaphragm material: 316L2. Shell material: 316L3. Pressure tube material: 316L4. Sealing ring: Butyl cyanide5. Net weight: about 26gVibration: no change under 10gRMS, 20Hz ~ 2000Hz Shock: 100g, 11ms Media Compatibility: Liquids or gases compatible with materials of construction and fluororubberBasic ConditionAmbient temperature: (25± 1)CVibration: 0.1g(1m/s2)MaxHumidity: (50%±10%)RHAmbient pressure: (86-106) kPaElectrical connection                                                                                                                                                                              PIN: 24V DC (Red)  OUT+(Black)  Detailed Photos Product Parameters ItemMinTyp.MaxUnitsNotesPower82430Vdc Output Comprehensive Accuracy ±0.1±0.2%FS@25C ±0.3±0.5%FS-20~80CRepeatability ≤0.1 %FS Hysteresis ≤0.1 %FS Overload pressure  150%FS ESD protection 2000 V Storage temperature -40~125 C Operating temperature -40~100 C Compensated temperature range -20~80 C long term stability ±0 2 %FS/year Temperature drift coefficient0.010.040.08PPM/C Power up time 80 ms Selection GuideNotes: The assembly method of the pressure sensor is recommended to use a "suspended" structure to avoid pressing the seal on its end face to prevent the stability of the pressure sensor from being affected. Pay attention to protect the isolation diaphragm at the front end of the pressure sensor, so as not to bump the performance of the pressure sensor or cause damage to the sensor.1.The shell core cavity should be designed with a tapered angle as shown in the figure, which is easy to assemble the core body and can prevent the right angle from scratching the sealing ring; lubricating oil can be applied to the sealing ring or the assembly port to facilitate assembly. 2.When assembling, pay attention to the tolerance ofthe core body size and the inner shell of the transmitter shell. It is recommended that the cavity be processed according to +0.02~ +0.05 of the core body diameter to achieve the required air tightness.3. When assembling, it should be placed vertically and pressed down evenly to prevent jamming or crushing the compensation sheet.4. The measured medium should be compatible with the Material of the core diaphragm shell (316L), otherwise special instructions should be given when ordering.! Do not press the metal diaphragm with hands or hard objects to avoid damage to the core due to chip deformation or perforation. ! The snorkel should be kept open to the atmosphere. ! Do not allow water, water vapor or corrosive media to enter the reference cavity at the rear of the core. ! Avoid falling and other man-made damages that affect parameter changes.About us                                                                                                                                                    Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China. As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification). With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling. XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions
