Exhaust Pipes Tube Product Making Machines

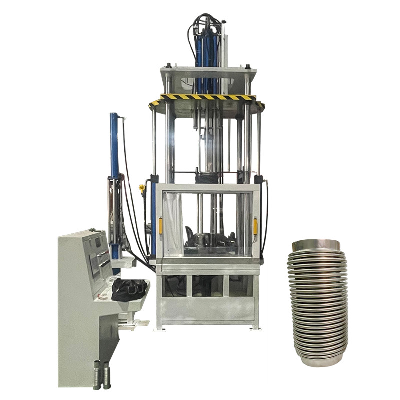

  Product DescriptionTube Welding MachineSize range: DN20-DN150 Wall thickness: 0.2-0.6mm Welding speed:0.8-2.0m/minControl: Frequency conversion speed controlWelding method: Argon-arc Welding Welding machine: Panasonic or KEMPPI welding machine                       Vertical Hydroforming Bellow Forming machine   NO.NameModelBrandUnitQTYRemark1PLC hostXC3-42T-EXinjiepc1Transistor output, AC220V power supply2Touch screenET100Kincopc110 inch3Switching power supplyEDR-150-24MEANWELLpc 1 4Intermediate relayRXM2LB2BD,RXZE1M2CFamous Brandset3DC24V,2P with LED light5AC motor starterCDV2S-32DELIXIpc1 6Proximity switchLJA12M-5D1C-Linpc5 7AC contactorCJX2s-1810DELIXIpc 2Coil voltage,AC220V8BreakerDZ47s-D10,D6DELIXIpc210A,6A 1P, one for each9Solid-state relayRT-SSK10DENMGset116 channels 10A DC control DC10Rotary knob YIJIApc12-position hold11Indicator light YIJIApc1Red,DC24V12Button YIJIApc1 13Aviation plug  set  14Terminals     15Communication line1.5m pc1 16Other electrical accessoriesWire ducts, guide rails,  install panel, cable ties,wire nose, etc.Interlock hose making machine(ID:38-150) Machine Type No.: CF-150 Available Shape: round or polygonal with different forming dies. Size range: ID38-150 Forming speed: 150-350m/8hrs Strip thickness: 0.25-0.5mm Strip width: 16 and 20mm Power:4KW Outer dimensions: 3500mm*1200*1600mm Weight: 950kgs48 carrier wire braiding machineConsisting of:-Braiding grail 1 unit-Caterpillar 1 unit-Bobbin, carrier 48 unitsTechnical parameter:Braiding diameter (mm): 30-75 Carrier rotation speed (r/min): 7.25 Braiding angle: 54°44"Braiding pitch (mm): 66-166 Pulling speed (M/H): 29-72 Carrier NO.: 48Motor power (KW): Y132M2-6 5.5kw; Y112M-4 4.0kw Dimension (L*W*H): 4150*1830*1900Machine Weight: 5000 Kgs   12-ply bobbin rewinding machineConsisting of:-Pay-off rack 1 unit-Winder 1 unitTechnical parameter:Winding diameter(mm): 2-12Rotation speed (r/min): 180-570 Wire diameter(mm): 0.25-0.5Winding speed(m/min): 50Motor Power:2.2KW  Product Parameters Machine Picture&Main parameters   Double end trimming machine1.Motor Speed regulating motor power:3KW Oil motor power: 2.2KW 2. Working principle The speed-adjusting point machine drives the gearbox (200 type speed ratio 40:17) to drive two pairs of gears through the chain,and the hob moves forward and underthe action of the cylinder. 3. Dimension L: 1.6m *W: 0.8m *H: 1.2m  Bellow compressing machineSize range:ID40-ID80Including 4 sets of toolings for 4 sizes Power:2.2KWSpeed:1600pcs/8hrCap Crimping MachineSize range: ID40-ID80 Including two sets of toolings Power:2.2KW Speed:1600pcs/8hr  Double end expanding machineSize range:ID40-ID80 Including two sets of toolings for 4 sizes Power:2.2KW Speed:2800pcs/8hr  Our client's factory sideCompany ProfileWe are professional manufacturer of flexible metal hoses/bellow,exhaust pipe production line machinery for over 25 years. Our machines have been exported to many countries, such as Russia, Ukraine, Canada, USA, UK, Poland, Australia, Malaysia,Singapore, Argentina, Brazil,India etc...FAQWhat is exhaust pipe size, wall thickness,convolution height, pitch,number of convolutions?It would be helpful if you directly send us the technical drawing of exhaust pipe.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
