Anti Vibration Generator & Engine Rubber Mounting

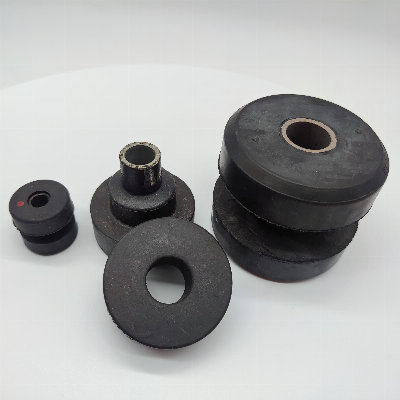

Product DescriptionThe 22000 mount is made of two parts of elastomer bonded to a central tube.· Interior reinforced : cylindrical tube.· Elastomer : chloroprene. Range of five different stiffnesses.Operations· The design of the 22000 mount gives the following basic characteristics :· elastomer element resistant to oils, supporting axial and radial loadings;· axial to radial stiffness of 1:1;· absorb vibration and reduce noise in all directions.Advantages· Good isolation against structural noises.·  Chloroprene resistant to oils.·  Simple ans economical.·  Simple to fix.·  Five size for a load capacity under axial pressure from 18 to 954 daN and under radial pressure until 443 daN·  Anti-rebound effect when it is assembled with a washer.   Area of Application22000 mounts can be used in static or mobiles applications, such as : pumps, compressors, generators, electronic equipement, HVAC equipement, engines with internal combustion, transmissions, plant cabs, radiators,etc.  Product ParametersE : support structure thickness can be E1 or E2 depending on the required load and natural frequencyReference  Barry Control ReferenceΦ A (mm)Φ B (mm)Φ C (mm)D (mm)F (mm)Mounting HoleWeight (g)Φ G (mm)R (mm)530903 11 to 15   22001-11 to 1510,433,220,112,331,719143530903 21 to 25  22002-11 to 1513,547,73319,849,231,71,5142530903 31 to 35  22003-11 to 1516,764,840,122,861,738,12,3313530903 41 to 45  22004-11 to 1523,888,958,425,473,157,13670530903 51 to 5522005-11 to 1527123,964,831,785,863,531306   Zinc plated steel washers are recommended for the assembly of the mount. They make it possible to carry out debouncing. * Not Supplied Reference*Washer*Φ a (mm)Φ b (mm)e (mm)Weight (g)530903 11 to 15  39,610,32,224530903 21 to 25  54,113,53,454530903 31 to 35  71,316,74,7140530903 41 to 45  98,523,86,3368   Operating Characteristics   Paulstra referenceBarry Control ReferenceSupport structure thickness E1 Load Per mountSupport structure thickness E2 Load Per MountAxial (daN)Radial (daN)Fo (Hz)E1 (mm)Axial (daN)Radial (daN)Fo (Hz)E2(mm)530903 11 530903 12 530903 13 530903 14 530903 1522001- 11 22001- 12 22001- 13 22001- 14 22001- 1518 40 63 113 1369 13 18 22 27159,518 40 63 113 1369 13 18 22 27159,5530903 21 530903 22 530903 23 530903 24 530903 2522002- 21 22002- 22 22002- 23 22002- 24 22002- 2559 79 109 172 28622 29 40 75 127121427 54 72 118 17218 36 56 81 1271512,5530903 31 530903 32 530903 33 530903 34 530903 3522003- 31 22003- 32 22003- 33 22003- 34 22003- 3595 159 222 390 60440 63 102 175 313112240 68 102 147 22731 47 72 111 1631519530903 41 530903 42 530903 43 530903 44 530903 4522004- 41 22004- 42 22004- 43 22004- 44 22004- 45122 231 350 531 95461 104 156 268 4431028,568 136 181 227 27250 100 136 181 2631525,5530903 51 530903 52 530903 53 530903 54 530903 5522005- 51 22005- 52 22005- 53 22005- 54 22005- 55518 877 1 172 1 609 2 072109 154 277 404 6401032136 227 318 409 54568 100 136 213 3001525,5         Company Profile   Office Show                                                                      Show Room                                                                         Show Room                                        /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
