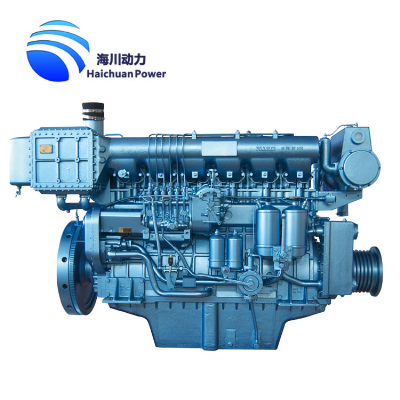

Baudouin Boat Motor Wechai M26 V8 Cylinders Marine Engine with 550HP

Product Description France-based Moteurs Baudouin provides a range of solutions for marine power integration systems. At the end of 2008, the company officially became a subsidiary wholly owned by Weichai Group. In 2010, Weichai started importing products manufactured by Baudouin. Thanks to Baudouin's comprehensive marine power solutions and Weichai's highly professional and efficient service networks, we provide our customers with power solutions beyond your imagination.  Power range:330-808kW Basic Specification for Marine EnginebrandWeichai Powermodel8M26C650-18rated power478 kWrated speed1800 rpmintake modeturbocharged and intercooledidling700±30 r/minnumber of cylinders8bore X stroke150×150 mmdisplacement21.2 Lcompression ratio14fuel oil consumption190 g/kW·hstart modeelectric startlub oil consumption0.8g/kW·hsmoke intensity≤ 1.0 Rbemission standardIMO TIER IIoverhaul period20000 hOverviewWP4/WP6 series diesel engine is upgrade version of 226B series high-speed diesel engine which is manufactured by a joint venture co-founded by Weichai and Germany-based Deutz AG with increased strokes and optimized design. It has advantages of compact structure, high reliability, high economic performance, easy operation and maintenance. This series engine, as main or auxiliary engine, are chiefly mounted on small-size transport ships and fishing boats on inland rivers. Power range:35-168kW  Basic Specification for Marine EnginebrandWeichai PowermodelWP6C250-25rated power168kW (250hp)rated speed2425rpmintake modeturbocharged and intercooledidling650±30 r/min number of cylinders6bore X stroke105×130 mmdisplacement6.75 Lrotation direction of crankshaft clockwisefuel oil consumption195 g/kW·hstart modeelectric startlub oil consumption0.8g/kW·hsmoke intensity≤ 1.2Rbemission standardIMO TIER IIoverhaul period12000 h   Engine ModelHPkWRPMAspirationPower Output InterfaceD226B-3C148351800NASAE3/11.5TD226B-3C54401500TSAE3/11.5TD226B-3C168501800TSAE3/11.5WP4C82-1582601500TSAE1/14WP4C95-1895701800TSAE1/14WP4C102-21102752100TSAE1/14WP4C120-18120881800TASAE1/14 WP6C122-15122901500TSAE1/14WP6C140-231401032300TSAE1/14WP6C142-181421051800TSAE1/14WP6C150-151501101500TASAE1/14WP6C156-211561152100TSAE1/14WP6C163-231631202300TSAE1/14WP6C165-181651221800TASAE1/14WP6C185-211851362100TASAE1/14WP6C198-231981452300TASAE1/14WP6C220-232201622300TASAE1/14WP6C250-252281682425TASAE1/14   Series226B-3CWP4WP6Typeinline, direct injection, 4 strokes, water cooledNumbers of Cylinders346Bore (mm)105Stroke (mm)120130Displacement(L)3.124.56.8Fuel consumption (g/kW.h)
