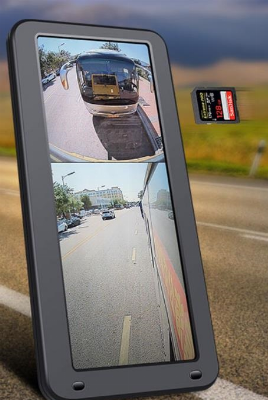

12.3" Rear View Mirror

12.3" mirror monitorSupport 2CH x 1080P cameras/720P cameras input  Support 1080P/30fps video recording  Support up to 256G SD Card  Support automatic backlight adjustment (dimming function) Support automatic camera identificationSupport mix AHD/CVBS cameras inputResolution: 1920*3 (RGB)*720, IPS Brightness: 1000 cd/m2  Contrast: 1000:1  IP69K camera night vision distance: 10m (16.40ft)  Power Input: 8-36V  Shockproof Rating: ISO 16750-3 (6.3G Max)   Audio & Video  Video standardPAL/NTSCVideo compressionH.264 Image resolution1080p/720P/960H/D1/CIFPlayback quality1080p/720P/960H/D1/CIFCompound modeA variety of waysImage displaySingle/split display optionalAudio CompressionG.711Audio recordingAudio & Video synchronized recordingVideo2-Channel aviation-type VIDEO.audio1-Channel aviation-type AUDIOVideo bit rateFull frame 4096Mbps,6 classes image quality optional Audio bit rate8KB/sStorage mediaSD card Video inquiryInquiry by channel/Recording typeLocal playbackPlayback by fileFirmware upgradingUpgrading modeManual/Automatical/RemoteUpgrading methodUSB disk/SD cardSpecification12.3 inch Split View Rearview Electronic Mirror MonitorOperating Voltage 8-36V (3A Max) Resolution 1920*3 (RGB)*720, LVDSViewing Angle U: 85°/D: 85°, R/L: 85°/85° Number of Cameras & Video Formats 2 pcs, 1080P/720P, PAL/NTSC Operating Temperature -20°C~+60°C, RH90% Storage Temperature -30°C~+80°C, RH90% Shockproof Rating ISO 16750-3 Brightness 1000 cd/m2 Contrast 1000: 1 Input Channels 2 Contrast8:3720P Vehicle Dual Lens Side CameraItem Technical Specification Image Device 1/3" CMOS TV System 25/30 fps Effective Pixels 1280 (H)  x 960 (V) Pixel size 3.75 μm x 3.75 μm Scanning System Progressive Scanning Sync. System Internal Video Output 1.0Vp-p, 75Ohm Gamma Consumption 0.45 AGC Auto WDR 120dB White Balance Auto Electronic Shutter 1/25(1/30)~1/50,000 Seconds BLC Auto Operating Temperature -30ºC ~ 70ºC, RH95%MAX. Storage Temperature -30ºC ~ 80ºC, RH95%MAX. Minimum Illumination 0.01Lux Power Supply DC12V /24V optionalViewing Angle UPPER: 62°(H)  110°(V)    LOWER: 110°(H)  84°(V) /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
