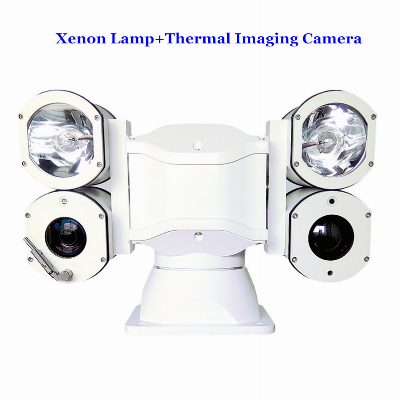

Multi-Function Double Xenon and Thermal Imaging Police Car PTZ Camera

Multi-function Double Xenon and Thermal Imaging Police Car PTZ CameraDouble Xenon Lamp+Thermal Imaging Features:Camera:30x zoom day/night hd ip camera module, 2.10  Mega Pixel progressive scan 1/2.8" CMOS,Max resolution 1920×1080,focal length 4.5-135mm,Minimum illumination: color [email protected], support ICR infrared filter type automatic switchingPTZ:   The first independent defogging defrosting module, solve the camera and lens foggingHigh-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defoggingPTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stableFill Light:Thermal imaging fill light:Uncooled infrared microbolometer, 640x480 resolution fixed focus: 50mmXenon lamp fill light: Double high brightness HID xenon lamp group fill light, night vision distance 500 metersXenon Lamp+Thermal Imaging: Configure dual xenon lamp fill light + thermal imaging fill light to fully cover the fill light requirements of each stageHD IP:PTZ supports mainstream digital high-definition integrated movement and high-definition SENSOR for high-definition image capture, compatible with mainstream HD platform and seamless docking, supports max 1080P output, supports dual stream and HD capture, supports IE browsingProduct application: 110 police car mobile law enforcement / fire emergency command / 120 emergency command system / road government mobile patrol / urban management law enforcement / special vehicle mobile inspectionProduct Specification:   30x,2.0 Mega pixel 1/2.8" Progressive Scan CMOS ICR day&night hd ip camera modulecameraImage sensor1/2.8" Progressive Scan CMOSScanning systemProgressive ScanSignal systemPAL/NTSCS/N Ratio>52dBVideo outputNetwork coding outputResolution50HZ:25fps(1280x960) 60HZ:30fps(1280x960) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720)LensFocal length4.5-135mm,30 zoom opticalApertureF1.6-F4.4Pan viewing angle65.1-2.3°(wide angle-telescope)Close-up10-1500mm(angle-telescope)Zoom speedAbout 3 second(optical,wide angle-telescope)Day&nightICR filterCompression standardVideo compression standardH.265/H.264Compression output coding rate32kbps-12MbpsAudio compression standardG.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCMNetwork functionSupport protocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,optional)FunctionFocus modeautomatic/manul/one focusExposure modeAutomatic explosure/aperture first/shutter first/manual firstDay&nightautomatic/color/white blackElectronic shutter 1/1 second ~ 1/30,000 secondWide dynamic4 grade adjustableExplosure compensation10 grade adjustableExternal interface36pin FFC (including network port,RS485,RS232,CVBS,SDHC,Alarm In/Out,Line In/Out,power)General specificationWorking temperature and humidity(-10° ~ 60°),less than 90%RHPower SupplyDC12V±10%Power ConsumptionStatic 2.5W,dynamic 4.5WMeasure(mm)50×60×92.9Weight300gThermal Imaging Function Detector typeUncooled infrared microbolometerResolution / pixel spacing640x480/17 μmSensitivity≤50mk@300KFrame rate25HzResponse band8~14μmNetwork image resolution640x480Main stream image frame rate25fps:640x486Substream image frame rate25fps:352x288Lens focal lengthfocus: 50mmImage displayBlack and white / pseudo color displayImage modeHDR wide dynamic mode: Haitian mode, world modeImage effectIDE,Smooth, super smoothDigital zoom1~8xContinuous zoomAutomatic gainAutomatic + manualThermal image analysis intelligent analysis(motion detection, intrusion, trajectory, etc.), target enhancement, high temperature tracking alarm  PTZ Function Pan preset speed100°/sTilt preset speed80°/sPan control speed0°~60°/STilt control speed0°~40°/SPan range360°endless rotationTilt range+90° ~ -90°Preset positions,Tracking 256 positions  6 trackingIR Distance2 groups lens, 100m night visionControl WayRS485, Built-in PELCO D/P 16 protocol, Baud Rate from 2400Bps to 19200Bps optionalRelative HumidityLess than 90%IP GradeIP66Working Temperature-35° ~ +65°Power SupplyDC10.8V-DC18VImpact resistance requirements≥4GWiperSupportInstallationVariety of installation according to the environmentWeight6kgNetwork parameters: Video CompressionH.264/H.265Audio CompressionG.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726Compression output rate32Kbps-12Mbps   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
