Factory Price High Quality Digital Sewer Camera Fiberglass and Waterproof Camera

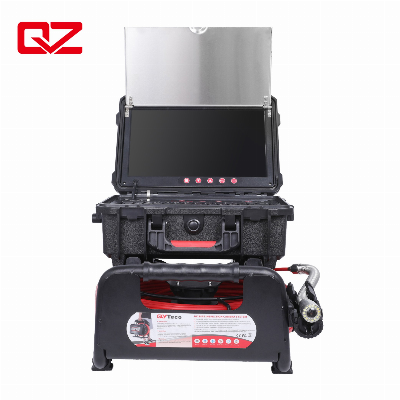

 Product DescriptionCCTV Professional endoscope camera with 512Hz and self-leveling functionThis HD pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation in sewer, drain, duct, chimney, milk pipes, water mains, central air conditioning, heating system, pipe sventilation systems, plumbing related sites and where a pipe inspection camera is required. It consists of three main parts: 1. Control box with 13.3inch big IPS DVR and wireless keyboard for text input; 2. Metal frame with automatic padlock;3. Cable reel with meter counter equipment, fiberglass push rod and 29mm HD Camera (sapphire lens).It is suitable for pipes with inner diameter at 70- 250mm.  Ability to go through 90° bends in pipe at:80mm (for 29mm camera with 6.8mm push rod).Key features:*Inspect lines from 2"to 10". *29mm(1.14'')1080P detachable double waterproof camera head. *Optional 512Hz transmitter and self-leveling built-in to all camera heads, field-tested tough camera heads. *13.3inch color monitor with 1080P resolution. *All-digital recording by external storage SD Card/ USB driver to store still pictures or videos. *Solid yet lightweight and multifunctional frames Durable & field replaceable push rod resists kinking. *Powered with either wall charger or build-in batteryCamera                                                                                                                                                 29mm 1080P HD camera512Hz and self-leveling function sapphire lens  29mm(1.14'')1080P detachable double waterproof camera headhigh resolution, clearer images, better visual experience   Optional 512Hz transmitter and self-leveling built-in to camera heads, field-tested tough camera heads  Camera head with sapphire glass lens cover allow the camera to withstand repeated hits in various pipes.Control box                                                                                                                                          Separate screen switch button304 stainless steel sunshade USB & SD card(Support max. 1TB)Meter counterThe power button is set separately between the host and the screen, and the screen can be turned on or off separately The light baffle is made of 304 stainless steel, anti-corrosion, anti-rust, anti-fall, shade and sun, convenient for outdoor work   All-digital recording by external storage SD Card/ USB driver to store still pictures or videos. One button to switch Meter-Feet distance counter and reset button can recount the meter at any time as required.Support Frame                                                                                                                                     multi-function bracketAutomatic Padlockhumanized designed handleThe position of the lens is self-developed multi-functional bracket, clamp cable, fixed lens, do not remove the lens bracket can also be firmly fixed, easy to use, increase work efficiencyNo any extra movement to lock the control box. With an automatic padlock function the control box is extremely easy installed on the metal frameThe handle of the toolbox is overmolding design and the handle of the metal frame is humanized designed with a plastic handle, which is convenient carrying and comfortable hand feeling.    Cable                                                                                                                                                    6.8 Dia. fiberglass cable Length optional Rotatable cable reelFiberglass is flexible, has good electrical conductivity and high temperature resistance, wear resistance Cable length 20m/30m/40m/50m/ optional Rotatable cable reel mounted in metal frame for convenient operationThe price quotation is for the following configuration, please kindly check:1. Camera: 29 mm diameter2. Cable Diameter: 6.8mm in red 3. Cable Length: 50M 4. Screen Size: 13.3inch 5. 512 Hz 6.Self-LevelingProduct ParametersItem 29mm    camera    GeneralOperating Temperature-10~50ºC/+14~+122°FOperating Humidity30%RH~90%RHStorage Temperature-20~60ºC/+4~+140°FPower AdapterInput:110VAC~240V   AC,Output:12V   DC2APower SupplyDC12   inputCurrent  Consume750mA   MaxBattery Capacity9000mAh Li-ion BatteryA Single Charge Work Time7.5 Hour(9inch DVR);4 Hour(13.3inch DVR) Charge Time7  HourWaterproofP66 (Whole machine is waterproof only when the control box is closed and camera fullyinstalled)MEAS.QY6566:445*385*355mm;QY6688:540*430*365mm;WeightQY6566: Approx9Kg; QY6688:Approx 13Kg(slight different from different length of cable)CameraSensor1/3"   CMOSTV-Line1080P(1920*1080)View Angle120Focus Distance15cm(approx)Depth Of Field100cm(approx)Camera  Sizeφ29mm×50mm(Main    body)Camera  Length210mmFront LensSapphireShell Material304#Stainless SteelLightingBuilt-in 12xLED(White)LED DriverBuilt-in Dimmer(Pulley button)  Water-resistant20m water (Camera fix on Cable)DVRScreenIPS 16:9 super bright high-definition color LCD screen Resolution9inch DVR:1024(RGB)×600;13.3inc
