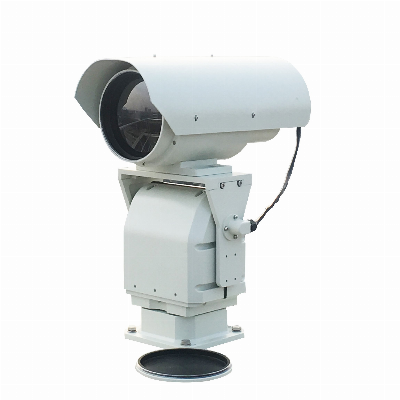

Waterproof IR Surveillance CCTV Thermal Imaging Camera Prices

Main features 1. High resolution uncooled microbolometer infrared focal plane arrays, vox 2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance 3. High sensitivity, NETD can reach 50mk and frame at 25Hz 4. Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far, not lost target 5. Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color 6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7. RS 485 interface control, analog video signal output 8. Simple operation, easy to use and maintain 9. Precision casting aluminium alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime  Technical indicators   Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect4320m11880mRecognize1080m2970mIdentification540m1440mDetectorDetector typeUncooled FPA detector(vox)Resolution384×288, pixel 25µm (640×512 optional)Spectrum8~14μmNETD≤50mKFrame25HzFFCAuto/Manual/sceneImage processDDE, pseudo colorVideo outputPALThermal lensFocal length36~180mm, 5x optical zoomFOV2.5°×2.0°~12.7°×10.2°F1.0 ~ 1.2Lens controlE zoom/focus(auto focus is optional)Pan-tiltRotating anglePan:0°~ 360°continuous; Tilt:+30°~ -45°Rotating speedPan:0.1°~9°/S; Tilt:0.1~4°/SPresets255AgreementPelco-D, Pelco-P OptionalBaud rate2400/4800/9600/19200 bps OptionalInterfaceRS485Power supplyAC24V±10%, 50HzPower consumption≤30WWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCLoad capacity20kgWeight10KgSize265mm×180mm×315mm(L×W×H)InterfacePower supply interfaceDC12VOther interfaceRS485, BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºC(-40ºC~+55ºC customized)Storage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(equip AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤7KgSize440mm×213mm×217mm(L×W×H, contain sunshield cover)InstallationOutdoor base installation  Thermal Camera SeriesApplication    Sheenrun products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project, frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.   Package & Delivery>>> PackageStandard Wooden or Carton cases >>> Delivery7-20 days after order confirned, detail delivery should be decided according to  production season and order quantity. Our Services 1. We generally offer one year warranty. Extended warranty is also available.  2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. 3. OEM available. 4. Customized product available.    CertificationCompany Introduction China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Exhibition photos          /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
