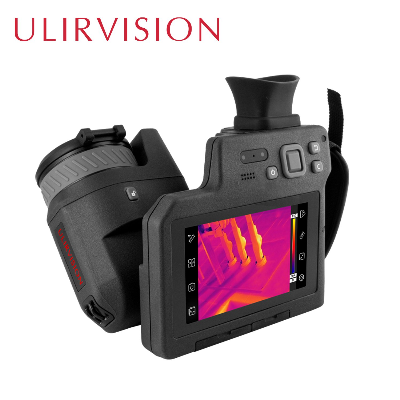

Auto Focus Thermal IR Imager Infrared Camera T50|T70 Multiple Measure Modes

Product DescriptionT50|T70 is the latest expert-level thermal imaging camera of ULIRVISION. Product adopts 384×288|640×480 high-pixel aSi microthermal detector, manual & auto integrated lens, 180° rotation,laser assisted focusing, excellent imaging quality, and meets the strict requirements of industrial market for high-end thermal camera.  Detailed PhotosProduct ParametersItemT50T70Detector DataTypeUncooled FPAIR resolution384×288640×480Pixel pitch17μmSpectral range7.5~14μmNETD/Sensitivity50mK25mKLens DataFOV24°×18°Minimum imaging distance0.3mIFOV1.13mrad0.68mradFocusManual/Motor/Continuous autofocus/Laser assisted focusingLens recognitionAutomaticLens(optional)48°×36°, 12°×9°lens rotation180° rotationImage PerformanceDisplayHD 5" touch AMOLED, 1280×720Viewfinder0.5" color OLED display, supporting manual zoom, 1920×1080Visual camera13 megapixel CMOS, autofocus, LED fill lightFrequency50Hz/60HzAmplification1X~35X continuousPalette12 palettes (including iron red, rainbow, black hot and white hot, etc.)BrightnessAuto/ManualMeasurementTemperature range-20ºC~+600ºC(can be extended to 1700ºC)Measurement accuracy5°C ~ 150°C,  accuracy is ±1°C or ±1% of reading; for other temperature ranges, the accuracy is ±2°C or ±2% of reading, take the larger valueMeasurement modeReal-time 20 movable spots, 10 movable rectangular areas and 10 circular areas (max./min. temp capture, avg. temp measure), 10 movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color)Measurement correctionAuto/ManualEmissivity correctionAdjustable from 0.01 to 1.0 or selected from list of materialsBackground temperature correctionAuto (according to the input background temp)Atmospheric transmissivity correctionAuto (according to the input distance, relative humidity, ambient temp)Setting functionDate/time, temp unit ºC/ºF/K, languageAlarmSound and light alarmYesImage storageMemory card64GSingle frame infrared image formatJPEG, with 14-Bit measured data imageSingle frame visible image formatJPEG or stored with single frame imageText annotationSupport 30 preset text annotations(editable)Voice annotation60s voice record, stored with per image via built-in microphoneLaser IndicatorLaser typeClass 2, 1mW, 650nm redLaser RangingMeasuring distance: 0.2m-50mInterfacePower interfaceYesSD card slotYesVideo outputHDMIAudio outputYesUSBUSB TypeC: Data transmission, radiometric video streamingWIFIYesBluetoothYesGPSYesCompassYesTripod1/4" -20Power SystemBattery typeLithium battery (rechargeable)Battery operating time4h continuous (room temperature)External powerDC: 5VCharging typeTwo-seater charger or in cameraPower savingYesEnvironment ParametersOperating temperature range-20ºC~+50ºCStorage temperature range-40ºC~+70ºCHumidity≤95%(non-condensing)Vibration2G(IEC60068-2-6)Shock25G(IEC60068-2-29)Protection levelIP54(IEC60529)Physical dataSize183mm×160mm×88mmWeight≤1.4kg(with battery and standard lens)PackingStandardThermal imaging camera, 2 lithium batteries, battery charger, adapter, USB cable, SD card, hdmi cable, SD card reader, USB flash drive, warranty card, calibration book, carrying case, user manualQuality assuranceCEYes Company Profile   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
