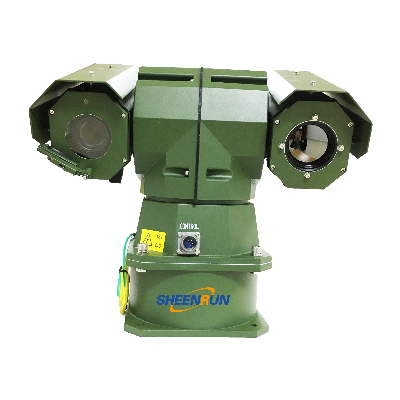

Car Mounted Dual Sensor HD IP Thermal Camera Dayvision Camera

Product Feature:1) Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring2) Adopting thermal imaging technology, not limited by light source, imaging clearly3) Day and night 2 megapixel low illuminance color camera, realizing details observing4) High intelligence, simple to operate, easy to use and maintain5) 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability6) Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance1200m3300mRecognition distance600m820mIdentification distance150m400mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30F/SImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(α-si)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV11.0°×8.2°Frame rate25HzLens controlElectric focusing(auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation,pitching -90°~+90°speedHorizontal 0°~50°/s,pitching 0°~50°/sPreset bitsMax 128Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V,appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight7.5kgInstallation methodOutdoor pedestal mountingAbout Sheenrun /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
