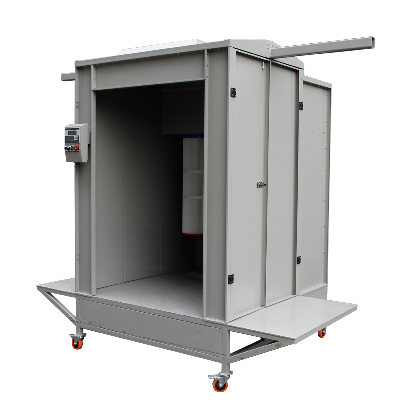

Go Through Elctrostatic Powder Paint Coating Booth

 Closed-drive-thru Powder Paint Spray Booth COLO-S-2152 Tunnel BoothThis booth is having side doors & article holding track entry & exit is from side through doors. By this way material handling is systematic i.e. from one side entry, coating & then exit from other side. If for spraying two side, could make 2 operation doors.In exceptional case, if article is very long then a door can be kept open & coating is done step by step by moving article slowly. In this case recovery will be reduced.Excellent Features1. Cartridge filter style powder coating booths2. Low compressed air consumption and noise level3. Good lighting system4. Open design making cleaning a simple operation5. Powerful extraction guarantees a safe and clean working environment6. Booth with a two sides door, can be used in line coatingSpecificationsModelColo-2152Booth TypeClosed-drive-thruOperator dimensions1400widthx1800heightx1000depthOverall dimensions2500widthx2300heightx1500depthPower Supply380V(50-60HZ)Nominal power3.5kwFiltersPolyesterFilter Count2Filter Cleaning SystempneumaticMachine Weight450kgWarranty12 monthsWhen you need to coating the big workpiece you open the door ; If coating samll size metals , closed the door and paint.Side Door   DrawingFilter recovery ,powder wo not go out ComponentsCompany photos Package we have two packages ,wooden box & paper box .If small package ,ship by express ,we will use paper carton .If ship by sea or air ,can choose wooden box and wrapped with the pearl. Customer Visiting&Exhibition We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business . Buying Guide If you are interested in this product ,pls feel free to contact us Address : No.57 Xiangcang RD,Xihu District,HangZhou city, China /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
