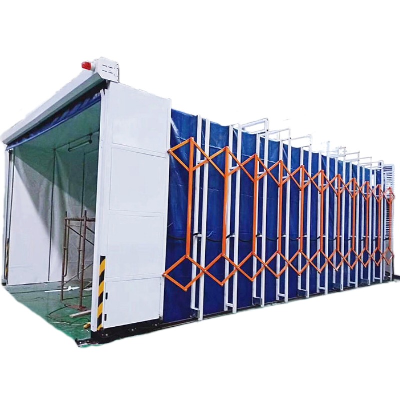

Retractable Mobile Telescopic Paint Booth Portable Spray Chamber

 Product ParametersRoom outside size:6950*4000*3300mmRoom inside size:6850*3900*2650mmPanels:Rear Wall panels:50mm thick antiflaming EPS panel,with 0.4mm thick steel skin, With tongue & groove style, anti-flame and heat-insulation;Roof panel: galvanized steel panels.Front door:Rolling shutter door, flame-retardant PVC cloth.Basement:Without base, there are guide rails.Exhaust  fan:1*15kw;double-inlet centrifugal fans.Telescopic drive and its track1.1kw motor reducer, chain sprocket, driving wheelPressure plate, inner diagonal pull20×40×1.8mm rectangular tube welding manufacturingAir ducts:Exhaust air ducts:Trapezoidal duct: 1pc; Elbow 90°duct:1pc;Straight ducts:2pcs, size:700*700*900mm;Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm.Filtering system:Rear wall fitlers.Control connecting rod20×40×1.8mm rectangular tube manufacturing, 1 set on each sideLighting system:Ceiling lights: 18pcs;Wall lights:12pcsControlling system:Intelligent control:power switch,spray/baking switch,light switch,emergency stop, electric damper button.Power total:About 16kw, voltage: 380V/50HZ/3PDetailed Photos  Activated carbon cabinet.Exhaust Air fans, 15KWDry type painting cabinet. Packaging & ShippingCertificationsProduct Introduction   Vehicles spray booth provides a closed environment for vehicles painting with pressure controlling. As we know that dust free, appropriate temperature and wind speed are necessary for painting. Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination.In order to promote dust free, appropriate temperature and wind speed for customers, our spray booth has follow advantages: following advantages:   Ventilation of the spray boothour spray booth has several ventilation systems which provide better painting conditions. All the filter systems and air exhaust systems underneath create a efficiently vertical air flow; and this air flow distribute inside of the booth evenly; then this air flow make overspray removing away from the vehicle immediately and completely.   Air recirculation on baking model100% of the air produced by the fan is transported into our spray booth during the baking model; and only 15%-20% is expelled outside which means the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.The inner temperature of the our spray booth raises rapidly; Then the heating system will power off at once when it reaches at baking temperature, this will save more energy.   Lighting The lighting system is provided by four*36W light fixed in the ceiling panels and side walls. They are sealed with 5mm tempered safety glass. our spray booth lighting system is able to supply enough lighting with lower energy consume safely.   FiltersThe filtering system is made up by high-efficiency filters. The filers hold higher dust retention capacity and lower resistance to the air passage. The long life designing reduces frequency of replacement, which is contributing to reductions in running costs.   Warranty Our equipments except quick-wear-parts are guaranteed for 12 months from the date of receipt, and the filters and lamps are quick-wear-parts. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
