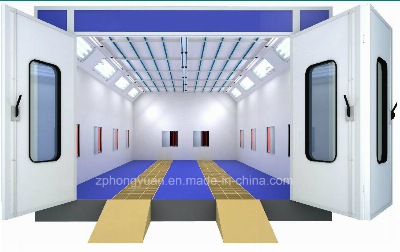

Auto Painting Equipment with Paint Booth and Spray Booth

 Spray booth 6.9m*3.9m*2.7m  Outside dimension:7000×5550×3400mm(L×W×H); Inside dimension: 6900×4000×2700mm(L×W×H); Front door dimension: 3000×2600mm(W×H); Working door dimension: 650×1800mm(W×H); Cabin system: 1.Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel. Roof panel: 0.8mm galvanized sheet; 2) Basement: steel structure base; three rows grill, two rows diamond plates; height is 300mm; 2pieces ramps; Air circulation system:    Inhaling Ventilator  Model:  YDW-4.5L1 Capacity:  24000m3/h Pressure:  800Pa Rolling Speed:  900rpm Power: 4kW Quantity:  2sets    Exhaust VentilatorModel: YDW5.6M Capacity: 21000m3/h Pressure: 800Pa Velocity: 900rpm Power: 5.5kW Quantity: 1Set Electric dampers actuate from spraying to baking cycle, equip with electric damper for exhaust air. Generator: back upper intake air, back up extract air, quadrate steel frame,coated steel;  Air purification system: 1. G3 grade, Pockets filter, 2. EU5 / F5 high efficiency filter (ceiling filter),  3. green fiber glass filter / G3 grade floor filter; 4. Pocket filter or M green fiber glass filter and active carbon exhaust fan filter(for option). Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set;  Spray to baking switch: 20N Electrical Actuator Chimeney Duct: 1 meters straight ducting and one chimney hood(longer chimeney for option) heating time is 5~7 minutes;  Max heating temperature: 80degree;   Lighting system: ≥900Lux Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ; Side lights: 8GroupsX2Pcs=16Pcsx36W(for option); Glass: all glass is clear tempered glass. Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm; Total power: 17.5KW Explain: Changed to metal sheet front door, the color sheet using 0.8 galvanized sheet powder coating made, the structure more secure and firm. aluminium alloy edge cabinet  ceiling filter support mesh Explain:using galvanized sheet bend Ceiling filter support mesh, more convenient to change  Project case for paint booth Certificate of our product and companyOur Team is serving you at any time  send us an inquiry  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
