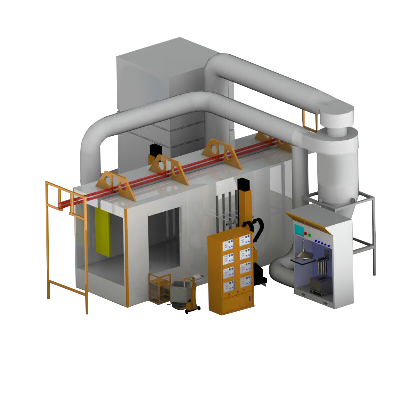

Cyclone Automatic Powder Coating Booth for Furniture/Hardware

Cyclone  Automatic Powder Coating Booth for Furniture/HardwareMulti-color application powder booth system designed with cyclone device tends to maximize efficiency during color change, reduce downtime while increase powder recovery. This system also built with automatic spraying equipment and intelligent powder supply center. Cyclone Type Automatic Powder Booth Features1. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders. a quick cleaning takes around 15 minutes.2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.3. There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.4. Booth material can be made anti-static engineering plastic, which reduces powder waste.Automatic Powder Coating Gun System1. A central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.2. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving perfect finish with consistent quality.3. The 100kv spray gun powerfully charge powders delivers high transfer efficiency, increase powder utilization4. Tested reliable system Based on COLO 12 years technology.Powder Coating Reicprocator 1. Linear rail guide mechanism, travel through a belt, a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion2. Heavy-loaded reciprocator with reliability to carry up to 24 pcs spray guns3. Moving speed and stroke can be easily set the touching screen with 20 storable programs.4. The slim column design allows for space-saving arrangement of the guns5. Increasy uniformity and quality consistency, reduce powder consumption.Powder Management Center1. Allows directly placing the powder box on a funnel, flexible for color change.2. Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.3. Ultrasonic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder flow.4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.5. A user-friendly PLC touching screen panel makes it easy to handle the process./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
