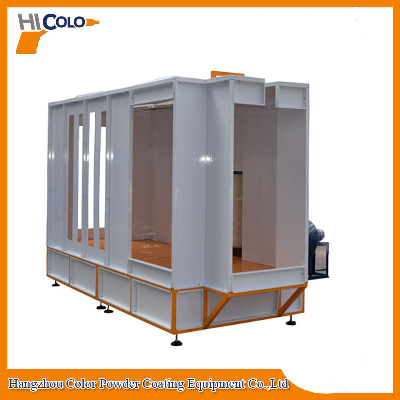

2016 Hot Sales Powder Painting Booth Package

2016 hot sales powder coating booth package equipo de pinturaIndustrial Automatic Spray Booths easy operation with good powder recovery systems. our customer of Ecuador buy 1 automatic powder spray booth,Reciprocator:1set,travel:2.5m,Automatic gun:4pcs,manual gun:1pcs, we ordered a 20GP to send the goods inAssemblybooth size and color can be designed by the requst.Specification:1.Spray booth: Inner Size: L3000 x W1400x H1550mmBooth board: SPCC/= 1.5mm Bending and formingUnder frame:40# square tubeFilters:325*900- 4pcs fan motor: 5.5KW, 1pcs 2.Technical data ModelCOLO-S-3145Booth Typedrive-thruOperator dimensions1400width x 1550 height x 3000 depth Weight750kgPower supplyElectricNominal power5.5kWVoltage380VFrequency50-60HzFiltersPolyesterFilters count4Filters hang typeeasy for changeFilter cleaning systemPneumaticWarranty12 months3.Advantage:1.Large coating opening, optimal utilisation of the size of the object2.Working with reciprocator 3.Smooth interior, easy to clean.4.the control and monitoring of each active component can be individually regulated, ensuring better service life for pneumatics and electrics.5.Short powder cycle, safeguards the powder.6.Energy saving air circulation, the extracted air is fed back into the paint shop.Also economical in mixed powder mode for individual colours.4.Replacing the filter cartridges Replacing the filter cartridgesProcedure for replacing the filter cartridges If a filter cartridge is damaged, but the damage can not be found, then the complete filter cartridges set must be replaced. The access to the filtercartridges takes place from the rear of the booth   Dismantling: 1.fix the screw on the top 2.Hold the cartridge with both hands, so that the filter's six ears for quick release cover six corresponding gap3.His hands up top, while the rubber ring as a fulcrum to sixty degrees clockwise4.Check the filter is fully embedded in the quick release cover, hand gently pulled the filter is securely5.Control cabinet-Bottom:1,power on/off2,hopper go up/go down3, emergency stopPLC Controller Operation:1.press  bottom 1 ,make the power on2,Press ↑or↓ ,make the display screen display like this3,Press F4 ,then into the booth control interface like this 4,Press F6,then the fan will on ,like this When you want to stop the work, please press F6 ,make the fan off, like this Then press the bottom 1 to make the power off.In the side of the booth have the switch to control the light lamp6.pic details showAny question,just contact us!!   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
