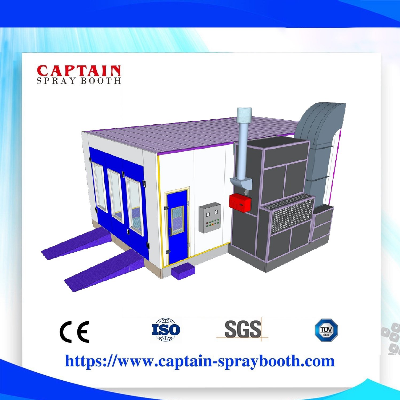

Car /Truck /Bus Painting Booth Car Spray Paint Booth

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .  1. CE approved 2. German Technology 3. Professional European-style blower system 4. Spray booth professional manufacturer 5. Factory price, energy saving 6. High quality, best sell service, timely delivery 7. We can meet at customer's special requirementSame quality, our price is lower.  Same price, our quality is better. We supply 2 years warranty! This model is our Customized model,also we can design the booth according to your needs.Detailed SpecificationsInside Dimension10000×5000×3000 mm(L×W×H)Outside Dimension10100x6350x3700mm(LxWxH)Front Door 4000×2800 mm(W×H), metal sheet panel door, bolt inside, strong hinge, sealing strip, 5mm glass 4 folds color: white, blue, red, orangeService Door 700×2000mm(W×H), 1 unit with 2 sets pressure lock , 5mm glass  Basement300mm high, 5 rows of grilles , with build-in ramp , reinforce the basement to support 4T         Under grilles has differnt models flow equalizing plate , in the middle is the standard flow equalizing plate , All around are customized flow equalizer platesWall Panel50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels,  Tongue and groove interlock structure. Ceiling Panel50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels,  Tongue and groove interlock structure. Ceiling systemTwo cotton frames near the air inlet use punching technology to reduce air volume Intake&Exhaust System1x7.5kw turbo fan for air intaking, air capacity is 28000 -30000m3/h; 1x7.5kw turbo fan for exhausting, air capacity is 28000 -30000 m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating.  Standard 3m air duct .Total 2 groups Lighting SystemCeiling Lights: 10units×4pcs=40pcs×16W LED lights   Side Lights: 12units×2pcs=24pcs×16W LED lights                Illumination≥1000Lux. Heating SystemItaly Riello FS20 gas burner, 200000Kcal/h. Stainless steel heat exchanger, max temperature: 80ºC. The burner need the Natural gas as resource to heat air and then the hot air go throught heat exchanger to the room. (Please note that we only provide the burner and its accessories. Customers need to complete the connection between the burner and the gas pipeline with the help of local electrical engineers.)  Total 2 groups Purification SystemPre-filter: on the air inlet to prevent large dust and other impurities; Ceiling filter: on the ceiling frame to prevent much smaller dust, make sure the air is clean Fiberglass floor filter:  under grilles. To prevent paint mist go outside                                              Activated carbon filter: on air outlet. To absorb paint smell                                                              4 kinds of flters to protect workers and environment.  We also put activated carbon particle to help absorbing paint smell. Controlling Systemwithout inverter type : spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, Differential pressure gauge ,etc. All electrical parts are from SCHNEIDER. with inverter type : spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, Differential pressure gauge ,etc. All electrical parts are from SCHNEIDER. Total Power32 KW  Design drawing:Real photos : Materials  Heat exchager  Wall panel ProductionPackage and DeliveryInstallation DrawWorkshop   Delivery time : after received you payment ,we will produce , for this standard model ,  the delivery time is 2-3 weeks .Payment term: 50% TT IN ADVANCE , 50 % before delivery After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)when your workers unloading the goods, If they find something damaged during transit by sea,  please take the pictures of the damage in the container and we will reissue you or give you some compensation.  (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)Professional team from design to installation! Warmly welcome to visit our factory!Sincerely hope can get your inquiry and warmly welcome to our factory! I'm just here waiting for you!Introduction of our company Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd) Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following: Car care equipment. Car spray&baking room system Bus spray&baking room system Furnitue spray&baking room system Industrial painting&baking room system High temperature baking room system Customized spray&ba
