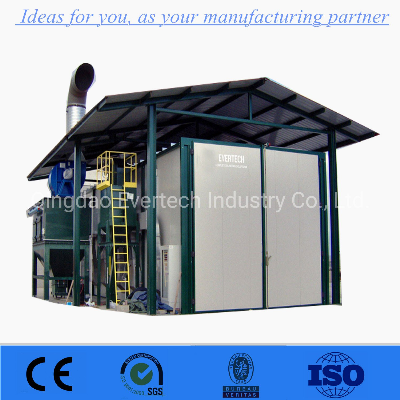

Blast Room and Paint Booth Solutions - Evertech Blast

Product DescriptionThe big irregular workpieces blasting and painting job has been widely completed by blast rooms and painting rooms, cause of this of kind parts have all kinds of shape, it is very hard to arrangement the blasting turbines to automatically blast cleaning the big workpieces at all angles. it will be an big waste of electricity and blasting media. Different shape of workpieces have different blasting angles, the automatically wheel blasting machines has not yet reached to the automatic level that blast cleaning different shape workpieces at different angle. Another difficult work is the transportation of different workpieces at different weight, it will be a big cost waste of transportation system if we designed the whole system according the biggest workpieces. Take all these uncertain factors into consideration, the blast rooms and paint rooms are the best choice for the end user. Qingdao Qinggong Machinery are experienced at the site-layout and whole system design, please do net heistate to contact us immediately if you have any questions about this.Room Size The right room size is dependent on the size of the largest workpiece you are trying to blast. The sand blasting room should be large enough to accommodate the largest workpiece and provide ample room for the blasting personnel to work. We recommend 1-1.5m of workspace around the blasting being blaster. We can customized the sand blasting booth according to the buyer's workpiece max length, width, height and weight.Product AdvantagesRoom Structure-- Whole room structure is welded by multiple square tube frames, max width of each frame is no more than 2 meters, this design makes whole structure more stable than old designs which only use square tubes at two ends of the room. -- Wall is made by glass wool sandwich board, which has the feature of anti-flaming and noise reduction, wall thickness is up to 50 mm. -- Walls are protected by high resistance rubber sheet with a max thickness of 5mm, average service time is up to 7 years.Sandblasting pot-- The pressure sandblasting pot could contain high volume of abrasives which allows continuous abrasive flow. -- Advanced imported abrasive controlling valve, air pressure valve and pneumatic switch compose the reliable pressure sandblasting system. -- The abrasive flow can be easily controlled by regulators, not only saving the abrasive but also reach high sandblasting effect.Dust Collecting System -- 2-level dust collector: settling chamber and cartridge filters. Cleaning efficiency is up to 99.5%. -- Filter material from Donaldson, effective filtration area of each filter is up to 15 square meter . -- Air shock valve with timing device can clean filters regularly. -- Models from 30 to 224 cartridge and up to 100,000 CFM capacity. Product Parameters ModelSize of room (mm)Size of jobs (mm)Spray gun quantityETBR0606056000×6000×50003000×3000×25002ETBR0606066000×6000×60003000×3000×35002ETBR0806058000×6000×50005000×3000×25002ETBR0806068000×6000×60005000×3000×35002ETBR10060610000×6000×60007000×3000×35002ETBR15060615000×6000×600012000×3000×35002ETBR15080615000×8000×600012000×5000×35002ETBR18080618000×8000×600015000×5000×35004ETBR18100818000×10000×800015000×7000×55004Spray nozzle caliber(mm)Compressed air consumption(m3/min)Sand consumption(kg/h)Spraying area(m2/h)φ62.26506φ83.92116010.7φ106.1180016.7Detailed PhotosReclaim Floor System----- Sweep-In Reclaim System----- Single Screw Partial Reclaim System ----- U-Shaped Partial Reclaim System ----- H-Shaped Partial Reclaim System -----  Full Floor Reclaim SystemSandblasting Effect Frequently Asked QuestionsQ1: How do I get the best price?A:   As you may know, the different type of blasting machine apply to the different price.Q2:  What machine suits me best?A:  Different workpieces and the different model apply to the different machine. Please tell us what's kind of workpieces need to blast cleaning? And what's MAX size of the workpieces ? Then we will recommand the most suitable model and the best price for you. Q3: In case of failure,how to do?A:  Call us----our enginners are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact usQ4:  Are you trading company or manufacturer ? A:  We are factory.Q5:  How long is your delivery time? A:  Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.Q6:  How many people are needed to run the Evertech's shot blasting machine?A:  For Evertech's standard blasting unit, one people will be enough. But for the custom complex production line integrated with shot blaster, the number of operators is varied according to the other accessory equipment and the whole line automaticity.Q7:  What does it cost to operate?A:  The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenan
