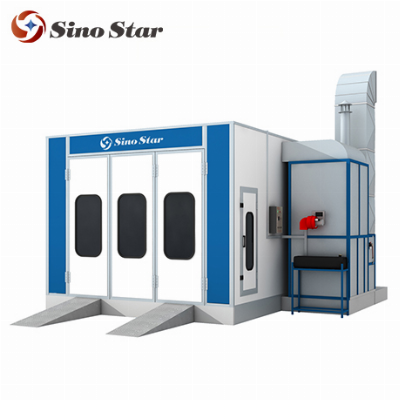

Ss-9100 Ce Approved ISO Approved Inflatable Spray Booth/ Auto Paint Booth

1: The Product Description of Spray booth: 2. The Technical parameter of Spray booth: MODEL:SS-9100Outside Dimension (mm)7006*5460*3420(L*W*H)Inside Dimension(mm)6900*4000*2650(L*W*H)Front Door(mm)3000*2600(W*H)Service Door (mm)650*1800(W*H)Total Power9KWTotal Weight3.8tCabin SystemWall panel  50mm EPS sandwich panel, steel sheet thickness: 0.426mmCeiling panel 0.8mm galvanized steel sheet.Basement300mm depth, two rows grids and three rows checkered plates. RampsTwo pieces 2000*600mm rampsGlass5mmsafety tempered glassWindowsSquare glass windowsAir Make-up SystemAir Inlet fan system1*7.5kw turbo fan Exhausted fan systemFor option Air capacity for fresh air22000m3/hExhausted ducting4meters straight ducting, one 90°elbow and one 45°elbow.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filterFiber glass filter / G3 gradeExhausted fan filtersFiber glass filter and active carbon Heating SystemHeat exchangerSUS304 material, argon arc welding.Heating burner:        RielloG20 diesel oil burnerHeating productivity                             180000Kcal/hSpray to baking switchPneumatic damper Chimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80ºCfuel consumption6-8L/vehicleLighting SystemCeiling lights8 Units, each 4 * 18W LED lamps. Total 576 WSide lightsSide lights For optionIllumination 800LUXControlling SystemSwitched control panel  Spraying & baking A33:G51switch,lighting switch, emergency stop, breakdown alarm, failure alarm/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
