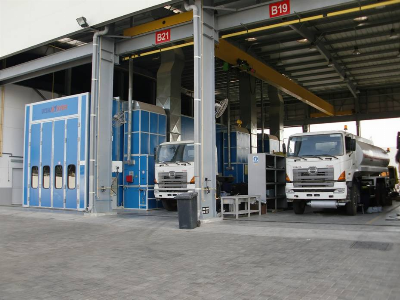

China Top Manufacturer Made Large Spray Paint Booth

Model: YS-18-50 Inside dimension: 18000*5000*5000mm L*W*H Any Size Requirements Can Be Met. Applied for bus or truck spraying A. During painting, a spray booth can offer a sealed environment with cleanness, safety, and excellent lighting for the painting operation of all kinds of components and different products. B. During baking, drying time, temperature and humidity in the spray booth can be set according to different paint materials to achieve perfect high-quality spraying and baking for your cars. C. Spray booth makes spraying and baking operations with no limits of all kinds of weather, thus ensuring the physical fitness of operators and absolute safety of the equipment. Warranty The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by the negligence of operations or mishandling of the machine. YOKISTAR Products High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booths, prep stations, mixing rooms, bench spray booth, open face spray booth and infrared curing lamp.   Inside dimension18000 × 5000 × 5000 mm  ( L × W × H )Outside dimension18144 × 6896 × 5600 mm  ( L × W × H )Pit2 rows of pits in the ground for exhaust air, the dimension of each pit is 16000 × 760mm (L × W), with galvanized grilles made of twisted steel and a flat bar above.Main doorFolding door, 4-folds, 4000× 4500mm(W× H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue.Escape door2 units, 800 × 2000 mm (WXH), color: white.Room bodyProfiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white.Lighting systemCeiling Lights: 24Units× 4Pcs=96Pcs× 36W, electronic ballasts. Side Lights: 28Units× 4Pcs=112Pcs× 36W, with electronic ballasts, vertically set, up and down interleaving installation.Generator settingIntake air from the side upper direction, exhaust air from the back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel, filled with heat preservation material in the middle.Intake and exhaust air system(3 units)6 × 5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, air capacity is 15500m 3 /h for each fan3 × 11KW double-intake centrifugal fans for exhaust air, with the motor outside, belt-drive, model TAE-630H, air capacity is 28000m 3 /h for each fan. Equip manual dampers for exhaust airHeating system(3 units)3 units RIELLO RG5S oil burners, heating productivity: 780000 Kcal/h, stainless steel heat exchanger, 3pcs pneumatic dampers actuate from spraying to baking cycleFiltering systemPre-filter, high-efficiency filter(ceiling filter), exhaust fiberglass filter, activated carbon filterRoof Plates50mm thick EPS heat preservation panelsControl bo xSpraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
