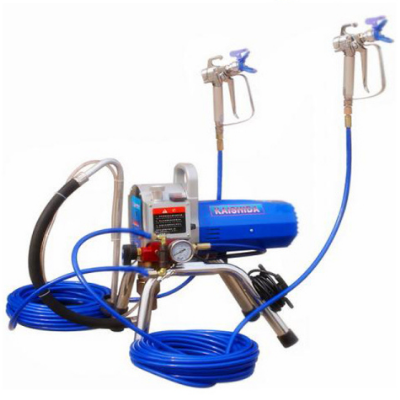

Ours Coating Series Airless Paint Sprayer

OURS Coating Series Airless Paint SprayerProduct description: Durable,good spraying effect.Can spray more variaties of paint than the general sprayer. Good for spraying interior paint, and part of the exterior paint (831,841 paint etc.). It allows good and even applicatioin of ordinary paint, and some special paint.OURS680i airless sprayer supports big muzzle and wide muzzle, greatly enhance the efficiency of spraying. So you can quickly complete a good spraying operations and enjoy your life.OURS880i airless sprayer, has 31.2% enhanced plunger stroke, greater flow,and higher efficiency.Advantages: 1. High spraying efficience2. High-quality coating3. Prolonging the life of the coating4. Spraying with no dead corner5. Saving the coatingTechnical parameter Motor Power: 1600W Voltage Frequency: 220V 50HZ Maximum output pressure: 22MPa Maximum unloading flow: 3.5L/min Maximum injection flow: 3.2L/min Nozzle diameter: 0.27mm-0.15mm Best spray distance: 350-450mm Spray width: 250mm-600mmOperating principle: Pressurizing the paint by the plunger pump, and the paint will be transported to the gun through the high pressure flexible hose and be the paint mist by the pressure of the nozzle, then form the compact coating on the surface of the workpiece.Spare parts:   MotorPMDC motor,220V,50HZ,Single phasePressure rotary knobControl the delivery pressure of coating (Clockwise: increase the pressure, anticlockwise: degrease the pressure)Power switchTo control the unit to start or stopReflux switchTurn on the reflux valve------(Flow state: horizontal state or wind anticlockwise) Turn on the reflux valve------(Spray state:  vertical state or wind clockwise)Lubrication holePSL sealing oil or advanced 45# sewing machine oil adding placeCoating sucking pipeSucking up the coating from the coating barrel into equipmentReflux pipeThe coating or solvent discharge here when it is at reflux state  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
