Industrial Spray Paint Booth with Energy Efficient Air Handling Unit

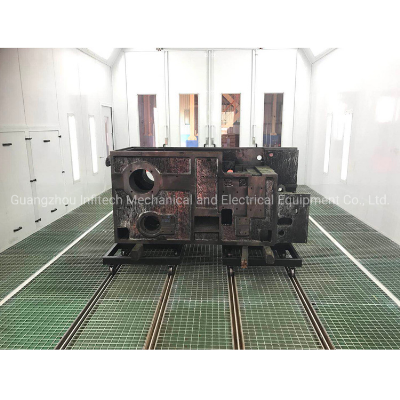

Industrial Spraying Booth with Energy Efficient Air Handling UnitApplication: painting and drying booths for industrial manufacturingPayment terms: T/T, 50% down payment, balance before shipmentProduction time: 30 daysShipping: by sea, 1x40HQ containerGuarantee: 2 yearsPARAMETERSItemSpecificationsModelIT-L8Workspace dimensions8000 x 5000 x 3500MM(L x W x H)Entry/exit3400 x 3400MM/set, 2 setsAir volume35,000m3/hNo load air speed0.24m/sAir exchange times4 times/minMax. working temperature80ºCHeating time5-10 min(60ºC)Max. calorific value290,000kal/hHeat exchange efficiency93%Brightness≥1,000 LuxFiltration efficiency≥95%Noise level≤80 db(A)Rated power30kwOVERALL DESIGN LAYOUTBASEMENTFull gratings, with floor tracks and trolleys for the conveyance of heavy duty componentsCABINThe side walls and ceiling walls are 50mm insulation rock wool panels. The groove and tongue connection design offer great convenience for the installation of the walls.The lights are LED lamps. Illumination is designed to be over 1,000lux.Plenum is 600mm high.There is one manual entry door at each end of the booth, for the conveyance of products before and after painting and baking by floor tracks and overhead conveyance system.The overhead conveyance system is assembled to the booth structure.AIR HANDLING UNITThe 2x11kw air make-up unit is high performance unit designed for spray booth which requires big airflow volume and high efficiency heating. Based on working power of 11kw and resistance of 600Pa to overcome, the air volume reaches as high as 35,000m3/h. It is outstanding among the many similar products. And it helps bring valuable savings in energy consumption over years of operations.The heat exchanger is made of stainless steel. It comes with three circulation channel, which ensures large contact surface between heat and air, greatly increasing the heat exchange efficiency.FAQQ: I require inverter controls for the fan units.A: Yes. We do recommend adding VFDs to control the working frequency of the motors. It helps not only save operating costs, but also regulate the pressure inside the cabin.   Q: Can the booth be built according to my dimensions required?A: Sure. It would be better you also tell us the dimensions of the products to be painted and baked. We can propose the right dimensions for your reference.   Q: What is the brand of the motors?A: SIEMENS, ABB brands are available. The voltage can be customized according to your specific requirements.   Q: Can you supply direct gas fired heating system for spray booth?A: Yes.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
