Good Price High Quality Spray Paint Booth

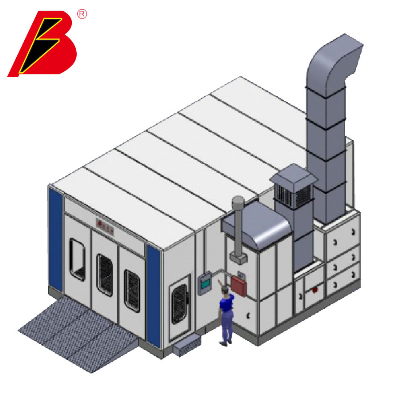

BZB-8500 Model Spraying&baking Booth                 Outside size:mm7040×5500×3450Inside size:mm6900×4000×2650cabin system1,wall panel:EPS (polystyrene) insulation board,thickness 70mm,with life   span 20 years. 2,entrance doors with aluminum frames. 3,full ramps made of embossed steel.air outlet and inlet system1,the YDW series centrifugal fan is of Siemens technology, this fan has low noise, large air volume,low energy consumption, etc.                                                                                                                              air inlet fan modelYDW4.5L;air capacity:14000m 3 /h;pressure800Pa;velocity:940rpm;power4KW;quatity:2sets. air outlet fan modelYDW5.6M;air capacity:20000m 3 /h;pressure800Pa;velocity:900rpm;power7.5KW;quatity:1set. 2,the ait inlet cabinet and air outlet cabinet is aluminum framed.air purification systemdual filtering structure:the primary fillter can capture granules larger than 15μm;the ceiling filter  can capture granules larger than 5μm,with the total filtering rate 98%.heating system1,Italian RG3S diesel burner,16,0000calaries per hour,with fuel consumption5~6kg/vehicle,                               heating time 5~7minutes. 2,SUS304 stainless steel heat exchanger,argon arc welding,with heating-exchanging rate 90%. 3,th fuel tank is 50L,equipped with Fuel display device and diesel filtering device.lighting system32 pieces of Philips lamps equipped with ballasts,and 16 pieces of bottom lamps,1000LUX.control systemspraying&baking switch,light switch,emergency stop,breakdown alarm,timer.environmental systemmuti-layers of fiberglass filter and shelf with active carbon,ensuring a high level of environment-friendliness.others1,with one tool box where the spraying tools can be put. 2,with one set of Frame rail made of stainless steel,where little spare parts can eb put and painted.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
