Spray Booth Paint Spray Booth Garage Equipments Paint Spray Booths Price

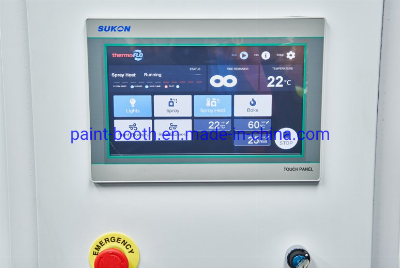

Spray  Booth Paint Spray Booth Garage Equipments Paint Spray Booths Price1.Highlights1) CE certified 2) Internal dimensions: 6900x4000x2800mm3) Metal basement 350mm with full ramp4) High performance low noise 2*7.5KW direct drive fan unit5) High efficiency diesel heating system 6) Inverter control, save energy2.Design and Details3. Main SpecificationsDESIGN STANDARDBS EN ISO 12100:2010, BS EN ISO 13355:2016BS EN ISO 13849-1:2015, BS EN ISO 4414:2010BS EN 60204-1:2018BOOTH DIMENSIONS Internal dimensions6900 X 4000 X 2800mm (L*W*H)External dimensions7010 X 5570 X 3810mm (L*W*H)BASEMENT Base designGalvanized sheet bending forming, full gridsBasement(H): 350mm, basement height can be adjustedCarrying capacity of the grids800kg/wheelFilter area28m2Drive-in-rampsfull ramps: 3 pieces; size: 2000 X 1030 X 330mm, diamond structureGrid descriptionSize: 997 X 756mm, 40 X 3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates.CABIN Cabin structureWall panel vertical insert, left side with full glass.Plenum height600mmWALL PANEL Wall panel50mm dual-skin insulated panels filled with heat resistant rock wool substrate thickness: 0.426mmTop panelSingle-layer galvanized steel plate bending formingEdge material1.0mm galvanized steel plate bending formingENTRANCE DOOR FormManual door, 3 wing entry door (2 + 1 structure)Size3200 X 2700mm (W*H)QuantityProduct entry door, 1 setDoor descriptionContaining frame, with safety glass observation windowPERSONNEL DOOR FormFrame structureSize800 X 2000 mm (W*H)Quantity1 setDoor descriptionWith safety glass observation windowCEILING LIGHTING Quantity and power8 sets of light fixtures, each 6 X 24W, 1152W totalLighting arrangementOn both sidesLighting descriptionLED lamp, protection grade IP55SIDEWALL LIGHTINGwithoutBrightness> 1,000LuxFILTRATION SYSTEM Pre-filtrationG2 grade pre-filter bag filterCeiling filterF5 class filter cotton, Model SP-600GFloor filtrationFiberglass paint arrestor filtersExtract filtrationSimple activated carbon filter mat, M typeINTAKE SYSTEM Intake fanDirect-type turbine fanPower and motor description7.5KW, 970rpm, 380V, 50Hz, CE approved motorParameter of intake fan28,000m3/h, 650paEXHAUST SYSTEM Exhaust fanDirect-type turbine fanPower and motor description7.5KW, 970rpm, 380V, 50Hz, CE approved motorParameter of exhaust fan28,000m3/h, 650paEmpty loaded air speed+/- 0.27m/sNOISE
