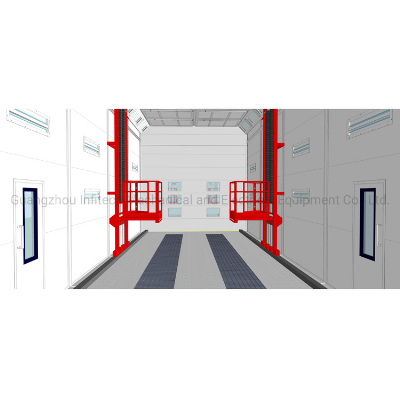

Garage Equipments Auto Painting Equipment Paint Spray Booth Garage Paint Booth1.FEATURESThe bus painting booth IT-21-5.5Acomes with downdraft airflow.It has internal dimensions of 21000x5500x5500mm. With electric roller shutter door in-between, the booth is divided into 2 working areas. Work can be carried out separately in each work area with respective control. The 2 work areas can work together when painting bigger size bus or trucks.Infitech is experienced in designing and manufacturing massive spray booths to meet your industrial application requests. Feel free to send your inquiries.2.SPECIFICATIONSITEMSGarage Equipments Auto Painting Equipment Paint Spray Booth Garage Paint Booth SPECIFICATIONSModelIT-21-5.5A European Standard Bus Painting BoothsDesign standardBS EN 13355: 2004 + A1: 2009BS EN 60204: 2006 + A1: 2009Internal dimensions - AREA 110500 X 5500 X 5500mm (L X W X H)Internal dimensions - AREA 210500 X 5500 X 5500mm (L X W X H)External dimensions21170 X 7120 X 6360mm (L X W X H)AirflowDowndraftPlenum (height)800mmExtraction800mm deep pit with gridsExtraction area28.6m2 (based on 1 row of grids)Grids carrying capacity1,500kg/wheelEntrance door4270x5300mm (WxH), manual entry door, 1 setDivider door in-between5000x4500mm (WxH), electric roller blind, 1 setService door800x2000mm(WxH), 3 setsWalls60mm rock wool wallsCeiling lights (LED)36 sets, each 4 X 18W, 2,592W totalSidewall lights (LED)33 sets, each 4 X 18W, 2,376W totalBrightness>1,200LUXFiltersBag filter, high efficiency ceiling filter, floor filter, exhaust filterIntake/Exhaust unitDirect-type turbine fan, 4* 2x7.5KW, SIEMENS motorAir volume4*28,000m3/hEmpty loaded air speed0.27m/sHeats4*232kw heat exchanger, RIELLO gas burner RS5*4Maximum working temperature 80ºCControlsCE standard control boxInverter With inverterOption Man lift; Touch screen control; Electric entrance doorRated power70KW3.DETAILSAIRFLOWDowndraft airflowPlenum with diffuser devicePit with grids for extractionOPTIONSide downdraft airflowRear semi downdraft airflowREINFORCEMENT CABIN STRUCTUREInfitech big size spray booth comes standard with structural steel to strengthen the cabin structure. The structural steel is applied every 8 feet of length, strengthening the booth integrity.ENTRANCE DOOR AND LIGHTSDIVIDER DOORElectric roller shutter door for dividing the booth into 2 separate areas;           Work can be carried out inside each area separately or together.GENERATOR UNIT4 groups of 2*7.5kw generator units, 4*28,000m3/h air volumeOPTIONItalian brand fanDirect gas fired heating systemCONTROLFILTERSItemSpecificationPre-filterBag filterCeiling filterHigh efficiency F5 grade filterFloor filterFiberglass paint arrestor filterExtract filterActivated carbon filterOPTIONSMan liftMAN LIFTLifting Height3800mm from floorTravel distance9,500mmTravel speed8m/minDimension of the platform900 X 900mmLifting height of the platform550~3800mmSpeed of moving in and out3m/minLifting capacity of the platform300KGLifting methodPneumatic  Electric entrance doorElectric roller shutter doorElectric plate roll-up doorFAQQ: Can I install the bus painting booths outdoors?A: That's okay. But the bus painting booths must be protected by a shed from snow and rains.   Q: I need an industrial painting booth for heavy machinery. Can you supply?A: Yes. Infitech supplies all types of spray booth from small ones to massive aviation booths. Please send your specific inquiry through.   Q: Can I integrate overhead conveyor system with the spray booth?A: That's okay. But first of all, please advise the requirements of the conveyor system, so we can propose the right solution to you.   Q: Are your manufacturer?A: Infitech is professional manufacturer of CE certified spray booths. Except manufacturing, we also provide customers with workshop design and layout, technical consultation etc.   Q: How do I know if your booth fits my shop?A: You can send us the architectural drawing of the workshop for us to check. We will give you advice after checking the supplied drawings, and propose the right spray booth solution to you which matches your workshop.   Q: What about the warranty?A: 2-year warranty.   Q: How is the booth packed?A: The spray booth is generally packed and delivered as sub components on palletized metal frames, which can be handled by forklifts. There are protective sheets wrapped the cargo to prevent them from scratches during the shipment.   Q: How long is the schedule?A: For the bus painting booth IT-21-5.5A, the production schedule is about 40 days.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
