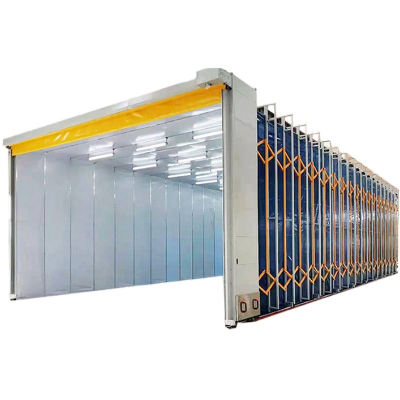

Retractable Waterproof Spray Paint Booth Mobile Telescopic Painting Chamber

 Product ParametersRoom outside size:6950*4000*3300mmRoom inside size:6850*3900*2650mmPanels:Rear Wall panels:50mm thick antiflaming EPS panel,with 0.4mm thick steel skin, With tongue & groove style, anti-flame and heat-insulation;Roof panel: galvanized steel panels.Front door:Rolling shutter door, flame-retardant PVC cloth.Basement:Without base, there are guide rails.Exhaust  fan:1*15kw;double-inlet centrifugal fans.Telescopic drive and its track1.1kw motor reducer, chain sprocket, driving wheelPressure plate, inner diagonal pull20×40×1.8mm rectangular tube welding manufacturingAir ducts:Exhaust air ducts:Trapezoidal duct: 1pc; Elbow 90°duct:1pc;Straight ducts:2pcs, size:700*700*900mm;Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm.Filtering system:Rear wall fitlers.Control connecting rod20×40×1.8mm rectangular tube manufacturing, 1 set on each sideLighting system:Ceiling lights: 18pcs;Wall lights:12pcsControlling system:Intelligent control:power switch,spray/baking switch,light switch,emergency stop, electric damper button.Power total:About 16kw, voltage: 380V/50HZ/3PDetailed Photos Activated carbon cabinet.Exhaust Air fans, 15KWDry type painting cabinet. Packaging & Shipping Certifications  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
