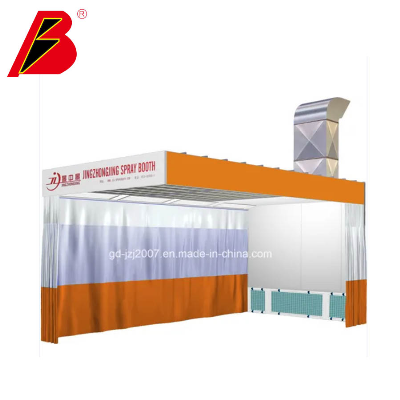

China High Standard Customized Prep Station Painting Equipment

Prep Station BZB-6300 Prep station Booth   Outside Size (mm)Inside Size (mm)Total Power (kw)7150× 4000× 34306000× 4000× 26507Cabin SystemRoof construction: cold rolling plate: galvanized steel                                  Front and Side: PVC soft slipping on aluminum guide, manual control Back wallboard: EPS steel skin board, 50mm ThickCirculation SystemModel: YD-5.6s; Capacity: 15000m³ /h; Pressure: 800Pa; Speed: 900rpm, 1 set, Power: 5.5 kw Fan Cabin: Profile framework, Assembly of steel plate cabin;   durable, beautiful and easy for MaintenancePurification SystemMulti-layer filtering Structure, the ceiling filters capture granules bigger than 5μ m. The whole purification system has capacity of large volume of dust.Environmental SystemDual filtering structure, the first filter, under the grids, captures bigger granules. The second filter, the fiber glasses filter, under the exhaust cabin  capture the rest granules.Lighting SystemCeiling light: 24 pcs36W  Lamp; light can make the room bright and uniform. Ballast is professional and durable.Controlling SystemIt is assembled by good electronic components. Main circuit has multi-protection. Working switch, light switch, emergency stop, breakdown alarm.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
