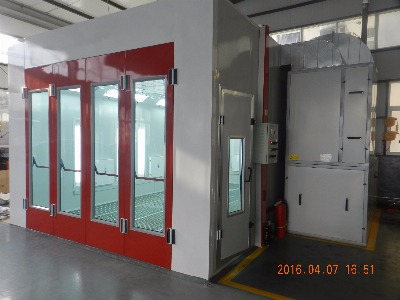

Garage Equipment Infrared Lamp Car Spray Paint Booth

What is the Details of our Spray Booth?    Total Power45.5kwBooth Outside7000*5200*3600    Length*Width*Height (mm)Booth Inside6900*3900*2750    Length*Width*Height (mm)Door Dimension3 folds main door,3,000×2,700mm(W×H),Equipped with Handle & Lock one personal door,800×2,000mm(W×H),Equipped with Handle & LockWalls Panel75mm thick,EPS panel, covered by 0.426mm color steel. Tongue and groove interlock structureBasement SystemGrid Plates (Galvanized)* 2rows Diamond Plates (Powder Coated or Galvanized)* 3rows 2 ramps,each size 800x2,000mm(WxL)Heating System10 units of Infrared Lamp, 3pc/unit, 1kw/pc, total power: 30pcs; Each set of infrared lamp have protected net, and lamp box;Filter SystemPrimary Filter* 1set, G3 Grade(EU-3) Air-Intake Filter* 1set,F5 Grade(EU-5) Air-Exhaust Filter*G3 Grade(EU-3)Air SystemAir-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each Air-Exhaust Fan* 1unit, Centrifugal Fans with 4KW motor Cabinet for the fans* 1unit, Air Ducts and Belimo NMU230 20NM electric damperIlluminationCeiling Lights * 32pcs, 20w LED lamp,  Side Lights * 32pcs,20w LED lamp with Light Fixtures, anti-explosion design,Illumination ≥800LUXControl System*1unit,Button type control box, with safety protection buttonWhat is the Features of our Spray Booth? Case show Why Choose Us? Autocare spray booths come in a variety of sizes that are custom to your needs. Our experienced industrial designers and engineers are constantly innovating the way we see the spraying industry every day. We always challenge ourselves through innovation to be the leaders in this fast growing industry. Our primary objective when creating quality auto spray booths and equipment is to provide the operator ease of operation and efficiency. Our design and production will help expedite the overall process, saving a large amount of time and money.Contact UsIce Wu Tel:008613589890436  Welcome your enquiry!   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
