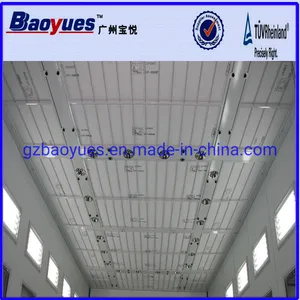

Garage Equipment/Spray Booths/Paint Spray Booth with Air Purification System

Basic Info.Model NO.BY-6TypeSpray BoothCertificationCCC, CESubstrateSteelBrandBaoyuesCoatingPaintingAirflow DirectionFully Undershot-typeHeating ModeDieselPaint Mist TreatmentDry-typeConditionNewInside Dimension6900*3900*2650 mmFunctionBaking and PaintingDesignEuropean DesignTrademarkBaoyuesTransport PackageExport Professional PackageSpecificationCE, SGSOriginGuangdong, ChinaHS Code84198990Product Description  Luxurious Spray Booth BY-6 (1) Unique European designs and competitive prices; (2) CE approved high quality;(3) High efficency to save energy and protect enviroment;(4) Low noise and low pollution;(5) With water-borne paint system. Detail showManufacturing ProcessCertificateItemDetailed SpecificationInside dimension12000×5000×3500 mm (L×W×H)Outside dimension12144×6896×4100 mm (L×W×H)Front doorFolding door, 4 folds, 4000×3400 mm (W×H), galvanized steel frame, aluminium alloy window frame, colour: white.Emergency door1 units, 800×2000mm (W×H), colour: white, aluminium alloy window frameBasementWithout basement, exhaust from two line pits, each size 10350X760mm (LXW), with grilles above.Wall panelThickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with EPS insulation inside, colour: white.LightCeiling Lights: 16Units×4Pcs=64Pcs×36W, side light: 10Units×4Pcs=40Pcs×36W, with LED, light box powder coating.Generator cabinetIntake from side upper, exhaust from back upper, quadrate steel frame; machine-made panel covered, filled with heat preservation material in the middle.Intake and Exhaust systemInlet: 4×4KW centrifugal fan, model YDW4.5S, air capacity for each fan: 12500m3/hOutlet: 2×7.5KW centrifugal fan, belt drive, TAE-560H, air capacity for each fan: 23000m3/h, with damperHeating systemRIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, maximum temperature: 80 degreePurification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoof50mm EPS panel. With water-borne paint system on the both sides of ceiling, stainless steel nozzle, 4 units 0.77KW centrifugal fan, total air quantity: 13400 m 3 /hControl systemSpraying, heat spraying, baking, time setting, lighting switch, thermostat, failure indicator, power supply switch, emergency stop, hour meter, temperature limit controller, manual damperTotal power34KW (Power supply 3*380V, 50HZ)Parts details:What customers saying:Factory show:
