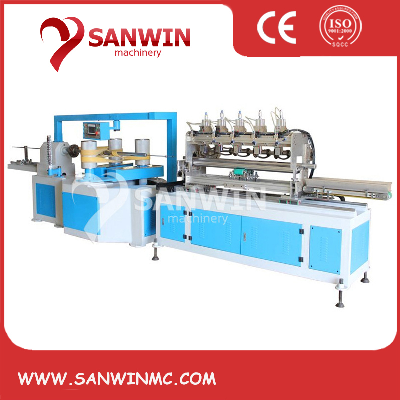

Three Heads Paper Tube Making Machine

SWJG-30 Three-heads Multi Cutters Paper Tube Core Making MachineDescriptions:SWJG-30 Multi-cutters three Heads paper tube & core making machine equipped with Numerical and Multi-blades Cutting System & Three-heads Winding System. Suitable for paper tubes with thickness 1-10mm.    -- 1.PLC controlling system with automatic operation. -- 2.Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision. --  3.Adopt with Multi-cutters and online cutting length reaches to 100-2000mm. Paper tubes can be finished in one-step.Technical Parameter:Technical ParameterPaper Layer3-16 LayersInner Diameter25-200mmWall Thickness1-10mmWinding Speed5-20 meters/minWinding NoseThree noses two beltsCutting SystemServo Synchronous Tracking CutGluing WayDouble SidesLength fixingEncoderOperator2-3 personsSpeed ControlBy InverterPower Supply380V/3Phase/50HzMeasurement & WeightMeasurement4100*1650*1800mmWorking Space11000*7000mmWeight3500kgsControl SystemMain motor3.5kw x 3pcs WannanPLCXinjieMan-machine InterfaceXinjieInverter11KW Wosen Servo Motor / DriverDongyuanLead Screw / SliderShangyinPneumatic ComponentsJingweiElectric ComponentsCHNTBearingHaerbinConfigurationPaper Reel Stand16 Layers Integral TypeGluing System16 Layers Spraying TypeInner Paper Shelf1 SetBelt2 PiecesMandrel Shaft1 PieceUseful Tool1 SetSample: Machine Photo:- Three Heads Spiral Winding - Multi-knives Online Cutting System Packaging & Shipping Our Service :1 Year Guarantee ! 100% Good Quality ! 24 Hours online Service!if you have any query, pls tell me freely. We will try our best to satisfy with you ! Contact us:Contact: Ms NancyMobile : 0086-15868035456  Website:sanwinmachine.en.made-in-china.com Add:Rui'an City ,Zhejiang Province,ChinaTop Quality--Buy Now--24 Hours Online/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
