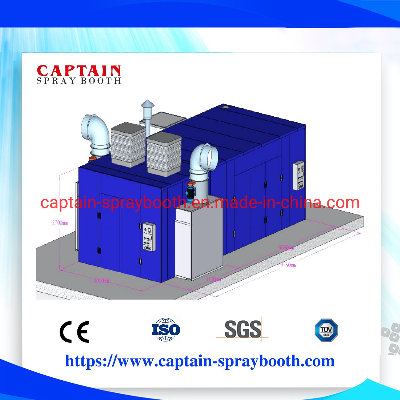

Painting Room/Spray Booth for Furniture Making

Note:For furniture painting room, the size is customized according to user's place. So there is no standard size.  The following size is just one of our models.  For filter type, there are 2 kinds, wet type and dry type. Wet type is filtered by water curtain, and the dry type is filtered by filtering paper. You can choose according to your prefer.  We introduce wet type-filtered by water curtain in the following:   Model NO.400 Inside Size(mm)7000x4000x3000Outside Size(mm)8300x4100x4500Front Door(mm)3000x2600(WxH)Total Power33kwCabin System50mm EPS panel, double 0.326mm steel with tongue and groove structure; The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window.Ventilation System2 sets 1.5 kw high efficiency top fans for supplying, air capacity is 36000 m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating.2 sets 3kw axial flow fan, air capacity is 40000 m3/h.  CeilingAir plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating.Lighting System4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating.Heating SystemStandard 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw.Purification SystemPre-filter, ceiling filter, fiberglass filter, activated carbon filter.Electric Controlling SystemHigh quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc.  different kinds of water curtain, can be customized according to your need The following 3 pictures shows the water curtain with water pump. The following pictures show the water curtain without water pump, the water come up by a fan. basic draw production package and delivery installation our workshop factory viewAfter-sales service 1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well. 2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 3. We provide 2 years warranty. Captain Advantages*The same price higher quality, the same quality lower price! ! ! *2 years quality warranty! ! ! *Fast and stable supply capability! ! ! *Personalized design to meet customer various needs! ! !Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
