Ce Approved Custom-Made Furniture Spray Paint/Paint Booth with Water Curtain

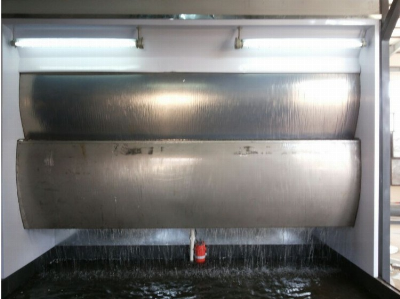

What is the Details of our Spray Booth?1.Performance characteristic: Water Spray Booth is a equipment of recycling and handling paint waste that were discarded during painting. Construction is a pool at the bottom, painting room at the front and spray chamber at the rear.2.Working theory: With pump as power for water circulation and spray, it will be water curtain on one side or three side in the painting room, and be spray in the spray room. The redundant painting spray that produced during painting will flow down with the water curtain when meeting the water curtain, others are took by exhaust fan, washing again when through spray room, to ensure the air that released to outdoor to meet the environmental requirements.   AC-4000W  AC-3000W Outside Dismensions (mm)4000(L)*1500(D)*2600(H) Outside Dismensions (mm)3000(L)*1400(D)*2600(H)Inside Dismensions (mm)3900(L)*400(D)*2000(H) Inside Dismensions (mm)2900(L)*400(D)*2000(H)Fan2 sets, 3kw motor each Fan2 sets, 2.2kw motor eachLightTwo sets, explosion-proof LightTwo sets, explosion-proofPump1 set Pump1 setMeasure Ment (m3)6.2 Measure Ment (m3)5.2Weight920kgs Weight740kgs     AC-2500W  AC-2000W Outside Dismensions (mm)2500(L)*1500(D)*2600(H) Outside Dismensions (mm)2000(L)*1400(D)*2500(H)Inside Dismensions (mm)2400(L)*350(D)*2000(H) Inside Dismensions (mm)1900(L)*350(D)*1900(H)Fan1 set, 3kw motor Fan1 set, 2.2kw motorLightTwo sets, explosion-proof LightOne set, explosion-proofPump1 set Pump1 setMeasure Ment (m3)3.8 Measure Ment (m3)3.2Weight600kgs Weight450kgs     Why Choose Us Autocare spray booths come in a variety of sizes that are custom to your needs. Our experienced industrial designers and engineers are constantly innovating the way we see the spraying industry every day. We always challenge ourselves through innovation to be the leaders in this fast growing industry. Our primary objective when creating quality auto spray booths and equipment is to provide the operator ease of operation and efficiency. Our design and production will help expedite the overall process, saving a large amount of time and money.Certificate Contact UsIce Wu Tel/Whatsapp/Facebook:008613589890436  Welcome your enquiry!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
