Electrostatic Powder Coating Painting Equipment for Motorcycle Parts

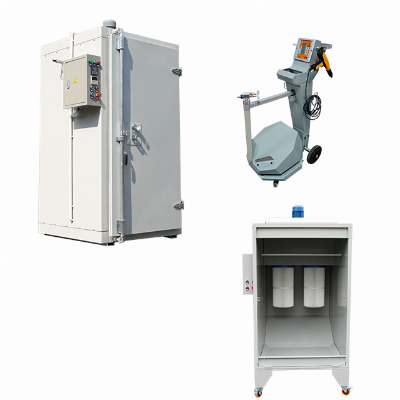

Electrostatic Powder Coating Painting Equipment for Motorcycle PartsSmall manual powder coating line , include powder spray booth, powder coating gun with powder coating curing oven. The manual powder coating line iworking like this: Handle the workpiece on spray booth ---> coating with powder spray gun ----->put it on a the trolley from Oven ---->after the trolley is full, push it into the oven and start curing---->cool down,the workpiece uploading   Electrostatic Powder Coating System, Includes Powder Coating Booth, Electric or Gas Powder Curing Oven, and manual powder coating gun.  powder coating boothSpray booth specification :The powder booth fans draw air through filters and releases it through the top of the booth. It keeps your shop nice and clean,minimizing powder dust.include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.ModelCOLO-S-1115Booth TypeClosedOperator dimensions1000width x 1500 height x 1000 depthOverall dimensions1200width x 2000 height x 1500 depth Weight200kgPower supplyElectricNominal power1.5kWVoltage380VFrequency50-60HzFiltersPolyesterFilters count2Filters hang typeeasy for changeFilter cleaning systemPneumaticWarranty12 monthsBody material: δ=1.5mm galvanized plat . pulse valves and solenoidsrecycling fan : 1/set, 2.2KWFilter size :φ325×600 fast-loading, 2 pcs light: 220v 18w 1 pcs Voltage is 380V /50HZ (could make as you want)Detailswith quick release filters ,make powder can be collected simple control panel,easy using . fan on /off/light swith /stop . with fan motor ,make powder can be absorb by the filter ,wo not spread out Powder coating booth With Recovery System: Automatic powder collecton Bin. It's work with Air pump,can be controlled by PLC control system .when press down ,can get the recovery powder .After seiving ,can reuse the powder .economic  Powder coating ovenPowder coating Oven specification :This Powder coating oven used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise. built-in track to roll your powder coating racks into the ovens could be ordered together as you required.Specification of the powder coating oven:Worksize dimensions1000width x 1600 height x 845 depthOverall dimensions1160 width x 2200 height x 1100 depthPower supplyElectric/ 6.55kwVoltage/Frequency110V/220v(50-60hz)Warm-up time15-30 min. (180° C)Temperature stability< ± 3-5°CTemperature max.250° CMotor power0.55kwCirculation/ Air flowVertical ,Variable through holes on the wallsVentilation performance805-1677m3/h      Products Details1.Great fan motor One set of heat resistant fan for circulating the hot air,maintains a uniform temperature in oven2.use great electricity tube ,take short time to heat. 3. control, accurate cure timing and helps improve fuel efficiency. 4.Optional insulated floor is comprised of 100 mm thick layer of insulated fibres and a steel plate cover, which allows trolleys to be used to carry products in and out of the oven. 5.with one set trolley ,can be customized madeThere are also many sizes oven can be chosen ,accept customized size oven.Powder coating machinePowder coating machine TechnicalData  Electrical DataPower Range220V/110VFrequency50HZ/60HZTemperature range in use-10 ºC+50 ºCPowder GunGun weight500GRated output voltage24VDCInput voltage- 200kvMaximum output current180Ua(maxMaximum output voltage0-100KV (adjustable)Maximum powder injection600g/minPolaritynegative (-)Pneumatic DataMaximum input-air pressure10kg/cmOptimum input-air pressure6kg/cmMinimum input-air pressure4kg/cmMaximum oil vapor content of compressed air1.4g/N m3Maximum compressed-air consumption13.2 m3/hSpecification &Advantage 1.0-100 Digital Adjustable KV ,Fully Adjustable Amperage 2.With three setting program,flat mode for flat shape workpiece, corner mode for complicated shape workpiece, recoating mode for respraying , easy for operation and suit for both beginners and specialist. . 3. Portable ,suitable for medium and small production capacity.If you need change colours very offenly it is economic to buy more small cups for different powders .Saves a lot of time. 4.LatestDigital Valve Control (DVC) technology ensures precise and reproducible powder output regulations and improves the film thickness consistency.Application Now ,powder coating is a new hottest trend in the industry .many factory choose powder coating ,replacing the liquid paiting because of the economic ,safety ,no pollution and goods effect. It can apply in LPG cylinder/fan /refrigerator/Shelf/door/electric cabinet/aluminum profiles/auto
