Professional Production Automation Electrostatic Spraying/Powder Coating/Painting Equipment/Paint Booth

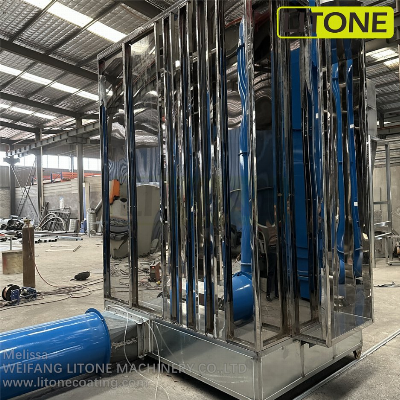

Electrostatic Automatic Powder Coating Line with Cyclone feeding center  Product Description  EquipmentFunctionOther instructionsPre-spray Treatment SystemRemove grease from metal surfaceBetter powder spraying of the workpiecePowder Spraying RoomAttach the powder to the work pieceThe fuel can be diesel, gas, electricity, etcCombination Baking ChannelPowder is sprayed onto the work pieceQuick color changeSuspended Transport SystemCarry out the conveyance of the workpieceChain suspension transportElectrical Control SystemThe power system of the production lineControl the entire production line operation  Coat pretreatment equipment The coat pretreatment equipment consists of pre-degreasing sectiondegreasing section, silane section and water washing section 1.2.3.4 Suitable for simple structure, serious corrosion, no oil or less oil steeparts. And no water pollution. lts main components are: 1 shed, 7 liquid storage tanks, 7 spray circulationpumps, 7 sets of spray systems, 2 sets of maintenance platforms, 4 sets otescalators, and 1 set of brush seals, The shed body and the tank body aremade of 1.5mm-2mm201 stainless steel plateSpray room The spray room is equipped with large cyclone or small cyclone recovery equipment and fast change color powder supply center. Single powder separation rate developed 98%, powder saving. Using nano - coated filter element, filter element life can be as long asseveral yearsOven The combined drying tunnel is mainly composed of drying and curingtunnels and a heating system. The heating system is mainly composed otsix parts: heating chamber, natural gas burner, heat exchanger, hot aircirculation fan, return air duct and temperature control system. Hot air circulation oven has good thermal insulation, uniform temperaturein the furnace and less heat loss. Heating methods can be used: electric heating, gas heating, particle combustion and other methods.Suspension conveyor chain Suspension conveyor is the conveying system of industrial assembly line and paintingline. The workpiece is hoisted on the special hanging device (bearing up to 500-600KG) and the switch in and out is smooth, The switch is opened and closed by electric controaccording to the work order, so as to meet the automatic transmission of the workpiecein each processing station.  Electrical control system   Electric control of painting line has centralized and single - column control. Centralized control can use programmable controller (PLC) to control the host, accord.ing to the prepared control program for each process automatic control, data acquisitiorand monitoring alarm. Sinale column control is the most commonly used control mode in the painting production line. Each process is single column control, The electric control box (cabinet) isset near the equipment, which has low cost, intuitive operation and convenient maintenance.The powder coating line is suitable for coating paint and plastic treatment on the surface of the workpiece, and it is used to form the transportation operation with the delivery machinery such as suspension conveyor, electric rail trolley and ground conveyor.The main components of powder coating line include: powder coating system, pretreatment equipment, powder coating equipment, oven, heat source system, electric control system, suspension conveyor chain, etc. In the process flow is divided into: pre-treatment, powder coating, heating and curing.Automatic powder coating equipment advantages.1.the use of automatic powder coating equipment can not only save labor costs, the most important thing is to significantly improve product quality, and to ensure the stability of product quality, so that the smooth and stable production of large quantities, a complete solution to the lack of enterprise productivity.2. Automatic coating equipment in the coating construction process will not produce irritating odor, not only to prevent pollution and damage to the environment, but also will not cause harm to the physical and mental health of the operator of automatic coating equipment.3. Automatic powder coating equipment for the first time the utilization rate of powder coating can reach 70%-80%, the coating thickness can reach 60-150 microns, and its powder coating can also be recycled, so the automatic powder coating equipment coating utilization rate can reach 90%-98%. A single coating can get a thicker coating.4. The powder coating of automatic powder coating equipment does not contain solvent,5. After curing, the powder coating of automatic powder coating equipment has high plumpness and soft color and because the powder coating does not contain solvent, it is not easy to form pinholes and bubbles when curing. Because powder coating is a solid coating, it will not leak and evaporate during the transportation process.   Detailed Photos  Application  Powder Coating Machine for Metal surface. Powder Coating Machine for Car wheel. Powder Coating Machine for Bicycle frame. Powder Coating Machine for Elec
