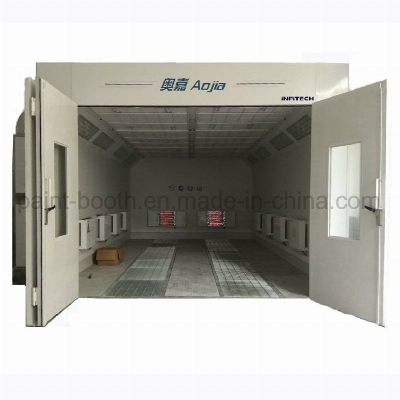

Infitech Auto Accident Repair Equipment Car Paint Baking Booth / Paint Curing Booth

INFITECH auto accident repair equipment car paint baking booth / paint curing booth DesignTechnical parametersINFITECH auto accident repair equipment car paint baking booth / paint curing booth  Design standard BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 Internal dimensions6900 x 4000 x 2800mm (L X W X H) External dimensions7010 X 5570 X 3260mm (L X W X H)Plenum height400mm Entrance door1 set, 3200 X 2700mm (W X H) Personnel door1 set, 800 X 2000mm (W X H)Ceiling lighting8 sets, each 4 X 18W, 576W total, LED lampSidewall lightingOptional Brightness >700LUXPurification Pre-filter, ceiling filter, floor filter, extract filter Air intake Direct-type turbine fan, 5.5KW CE approved motor Air exhaust Direct-type turbine fan, 5.5KW CE approved motor Air volume18,000m3/h Empty loaded air speed +/-0.18m/sHeating systemWall mounted infrared heating system, 10 units, 10 x 3KW Controls CE standard control box Rated power45KWFeaturesAirflow• Downdraft for spray and cure• Controlled airflow ceilingConstruction• White pre-coated galvanized steel• Dual-skin insulated panels filled with rock wool, 50mm thick• 400mm high plenum•Two rows of grids (650kg/wheel), with pit for extractionDoors• 3-wing entry door with tempered glass window• Personnel door with observation windowHeat• Infrared heating lamps, 10 units, 3x1KW/unit Service time of the lamps can last as long as 5,000hr• Temperature control• Time control• Group control All units can work together, or every unit works individually• Power adjustment• Automatic slow startFiltration• Pre-filter: G3 grade pre-filter plate filter• Ceiling filter: F5 grade filter cotton, Model SP-600G• Floor filter: G2 grade fiberglass paint arrestor filtersControls• PLC controller, pressure gaugeFunctions: Painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protectionProduce  details Packaging and loadingCompany informationGuangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
