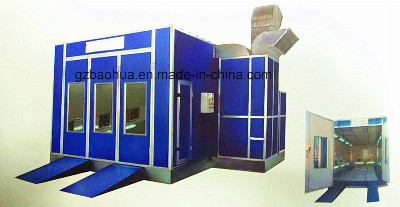

Electric Heating Car Paint Booth with Exhaust Fan

Electric heating system car paint booth with Exhaust fanWith English control boxExternal Size:7000*5350*3350mm                                                                  Internal Size:6900*3900*2650mm                  Main door:3000*2600mm        Working door:600*1800mm,50mm thickness,EPS wallboard,aluminum alloy+2pcs pressure lock.  Voltage:380V 50Hz                                                                              Total Power:36kw                              Wallboard :50mm thick,EPS wallboard,aluminum alloy binding with 2pcs pressure lock. Thickness of steel plate:0.426mm                                    Basement:270mm height Galvanized Steel assemble,2pcs decorative pattern plate,3pcs grille.2pcs pedal:520*2000mmRoof:Galvanized steel panelHeating system:8pcs*3kw Infrared lamps,240000 kcal/hour,stainless steel heat exchanger,Max heating temperature:80degree.                                                           Lighting system:Ceiling lamp:8group*3pcs*36w,Side lamp:8group*2pcs*36wIlluminate:>800lux              Rack device :Inlet air come from side upper,aluminum alloy frame, EPS +Steel wallboard.Smoke tube made of Galvanized steel (thickness:0.6mm),3pcs*700*700*1000mm straight tube,1pc elbow tube.Inlet fan:2pcs*4KW Inlet centrifugal fan(Turbine fan is optional). Air Volume:25000m3/hour Exhaust fan:1pc*3kw.Air volume:25500m3/hour Speed:1450rpmFiltering system:Early effect filter can capture granules that is larger than 10um.Ceiling high efficiency filter cotton can capture granules that is larger than 5um  Base floor fiber filter cotton(optional)                     Control system:Equipped with light switch,temperature switch,time settings,painting,spray paint,Constant temperature bake painting,fault alarm light,etc.             /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
