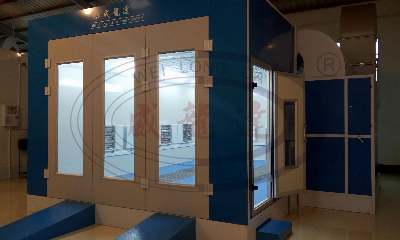

Infrared Lamp Car Spray Paint Booth with CE

1. Infrared lamp hot sale car baking oven for paint   2. Real spray booth manufactory in China 3. Save energy, provide more health environment 4.1 year warranty spray booth   External Size:(mm)7000x5430x3600 Front Door:(mm) Aluminum Frame3000(w)x2600(h)Internal Size:(mm)6900x3900x2600Total Power:(kw)37Cabin SystemWallboard Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) 50mm thickness, EPS foam Density is 14kg/m³ ;The colorful steel skin boards have been HDG(hot dip galvanizing ),service life can reach 20 years without rusting. It keeps high insulation performance with a low weight.Four colors for your choice,including blue,red,orange and white. High quality galvanized steel roof panel. Door  3 pieces of front doors with powder coating frame, Size:3000(w)*2550(h). 1 piece of emergency door. Air Circulation System Intake Fan 2x4kw intake fan,Siemens technology production,large air volume and low noise. Air Pipe Made of Galvanized steel sheet consisted of 4 pieces of straight pipe 750*750*1000, and 1piece of elbow.Filtering Dual filtering structure. The primary filter can capture granules larger than 10μm.Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. Heating SystemInfrared lamp  Consist of 28sets of infrared lamp.Each set of infrared lamp have protected net. The electric heating exchange rate reaches 95%. Infared heat radiation have a feature of high penetration,efficient,no noise,pollution free etc. Max temperature reaches 80°C. Optional infrared lampCosist of 10 sets of infrared lamp.Each set have a cover and 3 tubes,total 30 tubes. There is a stainless steel mirror refector for maximum heat projection efficiency.Air make up cabinetThe surface plate is galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repressionr, anti-rust and strong, more durable than ordinary surface treatment,  more beautiful, nodes with no damage spot, rigidity. Lighting System  Light tubeCeiling light has 24 pieces of 36w lamps. the grade of lighting box's dustproof and waterproof reach IP54 grade.  Light boxMedallions of welded galvanized plate, by the spray treatment, stiffness, repeated disassembly easy deformation, surface brightness,  color uniformity, heat is not easy to change color.Filtering System     Primary filterGrade G2 plate type fiber glass filter ; Dual filtering structure. The primary filters can capture granules larger than 10μm.Ceiling filterEU5 grade high efficient filter ;Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment,can reach 98%.Green filter for extraction plenumMultilayer glass Fiber. The air cleanliness in the working environment can reach 98%.Ceiling filter supportmade of tube steel frame, thickness of 1.2mm, epoxy powder coating, rust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton.Pollution Control SystemMulti-layer fiberglass filter.Control system   Control panelStandard control system   Function Painting, constant  temperature  painting , drying, lighting, painting time and  drying time setting ;emergency stop switch, failure indication, over-temperature alarm indication./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
