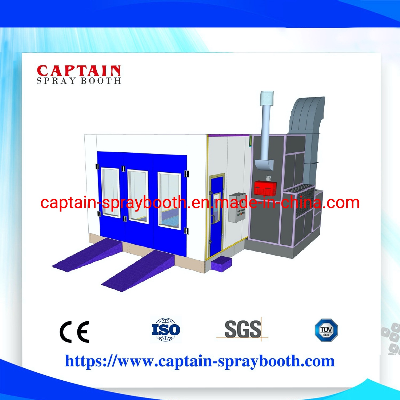

This model is our standard model,also we can design the booth according to your needs. Detailed SpecificationsItemDetailed specificationInside dimension6900×3900×2700 mm(L×W×H)Outside dimension7000×5350×3400 mm(L×W×H)Front doorFolding door, each set with 3 folds, 3000×2600mm,(WxH), metal sheet, color : blue, red, white, orangeEmergency door1 unit, 750×2000mm(W×H), color: whiteBasementGalvanized steel assemble, 300mm high, quadrate steel support, 5 rows grilles made by flat bar and twisted steel, 2 ramps, 630×1800mm/pc.Wall panelThickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with EPS inside, color: white.blue.orange.redLightCeiling Lights: 8Units×4Pcs=32Pcs×16W, Side Lights: 8Units×2Pcs=16Pcs×16W, LED lights. The lighting boxes open outside, and with powder coating. illumination≥1200LuxGenerator cabinetIntake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside.Intake and Exhaust systemInlet: 2×4KW centrifugal fan, air capacity: 22000 m3/h.Outlet: 1×5.5KW centrifugal fan, air capacity: 15000m3/h.Heating systemRIELLO G20diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000Kcal/h.Spray to baking switchAuto Pneumatic damperChimney ducting304 Stainless ducting and one safe fireproof chimney elbow.Purification systemPre-filter, ceiling filter, fiberglass filter, activated carbon filterRoof 0.8mm Galvanized steelControl system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, emergency stop, hour meter, temperature limit controller.Total power 16 KWDesign drawing:Real photos :Materials ProductionPackage and DeliveryInstallation DrawWorkshop Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks .Payment term: 50% TT IN ADVANCE , 50 % before delivery After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)Professional team from design to installation! Warmly welcome to visit our factory!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
